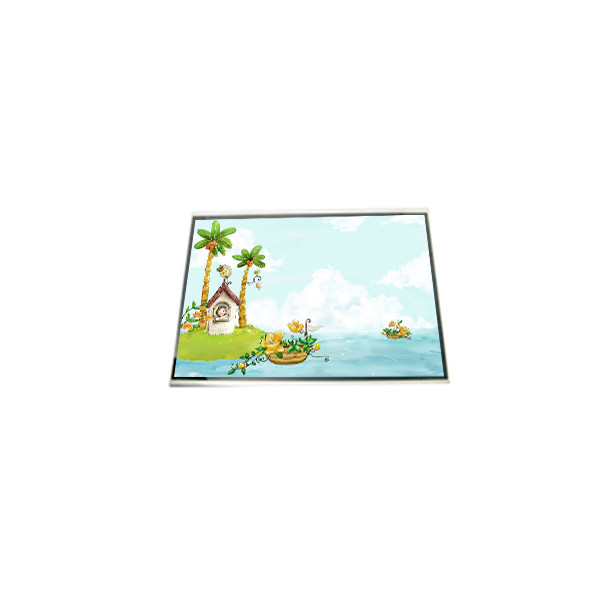

LPP055A384A 5.5 inch LCD screen LCD Display FOR Mobile Phone

Brand Name:	JDI
Model Number:	LPP055A384A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LPP055A384A

Diagonal Size:

Panel Type:

LTPS TFT-LCD, CELL, COG

Resolution:

1080(RGB)×1920, FHD 403PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

68.04(W)×120.96(H) Mm

Application:

Mobile Phone

Display Colors:

16.7M 70%NTSC

Contrast Ratio:

1500:1 (Typ.) (TM)

Response Time:

30 (Typ.)(Tr+Td)

Supply Ability:

100000 Unit/Units per Month

Product Description

LPP055A384A 5.5 inch LCD screen LCD Display FOR Mobile Phone

LPP055A384A LCD Panel Product details :

Brand	JDI
Model P/N	LPP055A384A
Diagonal Size	5.5"
Panel Type	LTPS TFT-LCD, CELL, COG
Resolution	1080(RGB)×1920, FHD 403PPI
Pixel Format	RGB Vertical Stripe
Active Area	68.04(W)×120.96(H) mm
Bezel Opening	-
Outline Dim.	69.64(H)×126.98(V)×0.46(D) mm
Treatment	Hard coating
Luminance	0 cd/m²
Contrast Ratio	1500:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	30 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Plate Thickness	0.15+0.15 mm
Transmittance	5.0% (Typ.)(with Polarizer)
Support Color	16.7M 70%NTSC
Light Source	No B/L
Weight	9.60g (Typ.)
Designed For	Mobile Phone
Frame Rate	-
Touch Panel	In-Cell Touch
D-IC Detail	COG Built-in R69338
Interface Type	MIPI (4 data lanes)
Power Supply	1.8/5.4/-5.4V (Typ.)(IOVCC/VSP/VSN)
Environment	Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C

LPP055A384A Pre-Order Check:

Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.

Note:

Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!

LPP055A384A LCD Panel Shipping and Package :

LPP055A384A Installation Tutorial:

Prior to Installation:Before embarking on the installation process of the LPP055A384A LCD screen, it is imperative to ensure your safety and the integrity of your equipment. To this end, kindly adhere to the following steps:

Power Off: Firstly, power down your device. Ensure that it is completely turned off and disconnected from any power source to prevent electrical mishaps during installation.

Unplug Screen Cable: Carefully unplug the existing screen cable from your device. This will prevent any potential damage or interference during the installation process.

Complete Installation: Only after meticulously following these precautions should you proceed with the installation. Reconnect the LCD screen and then, and only then, turn on the power.

LPP055A384A About the Goods:

Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.

While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.

LPP055A384A LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of LPP055A384A ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of LPP055A384A to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of LPP055A384A ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .
