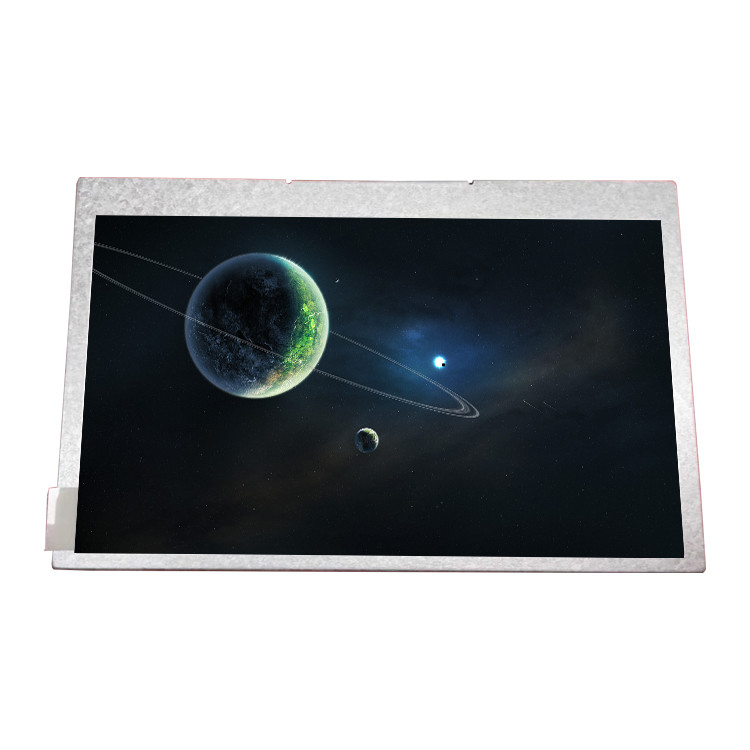

24.5 inch HSD250MUW3-A00 LCD screen TFT LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD250MUW3-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD250MUW3-A00 | Diagonal Size: | 24.5" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 89PPI | Active Area: | 543.46(W)×305.69(H) Mm |
| Bezel Opening: | 547.3(W)×309.6(H) Mm | Outline Size: | 568(W)×330(H) ×10.3(D) Mm |
| Surface: | Antiglare, Hard Coating (3H) | Panel Weight: | 1.75Kgs (Typ.) |
| Application: | Desktop Monitor | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
Product Description
24.5 inch HSD250MUW3-A00 LCD screen TFT LCD Display
HSD250MUW3-A00 LCD Panel Product details :
| Brand | HannStar |
| Model P/N | HSD250MUW3-A00 |
| Diagonal Size | 24.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 89PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 543.46(W)×305.69(H) mm |
| Bezel Opening | 547.3(W)×309.6(H) mm |
| Outline Size | 568(W)×330(H)×10.3(D) mm |
| Brightness | 250 cd/m² (Typ.) |
| Viewing Angle | 85/85/75/85 (Typ.)(CR≥10) |
| Best View on | - |
| Display Colors | 16.7M 68%NTSC |
| Frequency | 60Hz |
| Weight | 1.75Kgs (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 4 (Typ.)(Tr+Td) |
| Lamp Type | WLED , 30K hours , Without Driver |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
| 24.5 inch HSD250MUW3-A00 LCD screen TFT LCD Display | |
HSD250MUW3-A00 Pre-Order Check:
Before proceeding with your order, kindly verify if your machine model is compatible with this specific LCD screen. If you're uncertain, please reach out to us, and we'll promptly assist you.
Note:
Some of the screen backplates may not be entirely new, potentially showing signs of dirt or adhesive residue. Please take note of this!
HSD250MUW3-A00 LCD Panel Shipping and Package :
HSD250MUW3-A00 Shipping Information:
Please ensure that the model you've ordered matches exactly with the model you require. We will ship according to the model specified in your order.
Verify that the shipping address provided is accurate. Shipments will be sent to the address listed on the order. If you need delivery to a different address, please email us immediately after making the payment.
Shipments will be processed within 3 business days of receiving payment.
Each LCD panel undergoes rigorous testing before shipping, ensuring quality. Additionally, we take utmost care in packaging to ensure safe delivery.
LCD screens will be shipped using EMS/DHL/UPS based on location or customer preference.
Attention to Russian Customers:
For shipments to Russia, we can only use EMS. Please note that EMS delivery typically takes longer to arrive. We appreciate your patience during this time.
HSD250MUW3-A00 About the Goods:
Upon receiving your item, please confirm receipt. In the event that the item is damaged, kindly contact us immediately. Send us a photo of the damage so we can assess the situation and offer you the best solution.
While we guarantee timely delivery, please note that we do not have control over the express delivery time. Our dedicated sales staff will dispatch the Air Waybill (AWB) for your delivered goods on the following business day. You can track the AWB on the designated website provided to you. Alternatively, you can inquire about the AWB by contacting your local branch of the courier company handling the shipment.
HSD250MUW3-A00 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of HSD250MUW3-A00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of HSD250MUW3-A00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of HSD250MUW3-A00 ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of HSD250MUW3-A00 ?
A: The order will be shipped within 2-3 working days after received your payment.
Want to Know more details about this product
