BF050WVM-500 5.0 inch LCD screen TFT LCD Display

Brand Name:	BOE
Model Number:	BF050WVM-500
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

BF050WVM-500

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

480(RGB)×800, WVGA 186PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

65.52(W)×109.2(H) Mm

Used For:

Mobile Phone

Color Depth:

16.7M 50%NTSC

Supply Ability:

100000 Unit/Units per Month

Product Description

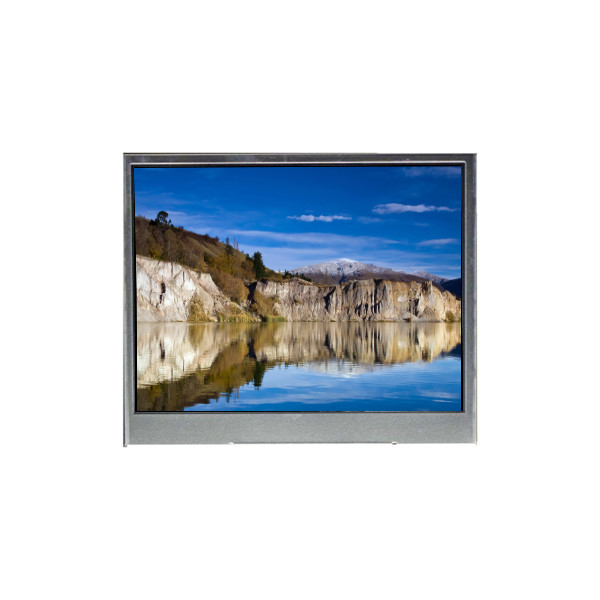

BF050WVM-500 5.0 inch LCD screen TFT LCD Display

BF050WVM-500 LCD Panel Product details :

Brand	BOE
Model P/N	BF050WVM-500
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	480(RGB)×800, WVGA 186PPI
Pixel Format	RGB Vertical Stripe
Active Area	65.52(W)×109.2(H) mm
Outline Size	70.12(W)×118.98(H)×1.9(D) mm
Brightness	450 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	ADS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	30 (Typ.)(Tr+Td)
Display Colors	16.7M 50%NTSC
Lamp Type	5S2PWLED, Without Driver
Frequency	60Hz
Touch Screen	PCAP, I²C
Panel Weight	35.0±3.5g
Application	Mobile Phone
Signal Interface	MIPI (2 data lanes), 30 pinsConnector
Input Voltage	1.8/3.3V (Typ.)(IOVCC/VCI)
Environment	Operating Temp.: -20 ~ 65 °C ; Storage Temp.: -40 ~ 85 °C
BF050WVM-500 5.0 inch LCD screen TFT LCD Display

BF050WVM-500 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

BF050WVM-500 LCD Panel Shipping and Package :

BF050WVM-500 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

BF050WVM-500 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

BF050WVM-500 LCD Panel FAQ :

Q: What happen if the BF050WVM-500 I receive can't work ?

A:BF050WVM-500 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: I do not find the LCD I am looking for in the website, what should I do ?

A: You can give us some pictures,we have a lot of LCD out of shelves.

Q: How long will I receive my goods of BF050WVM-500 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment for BF050WVM-500 ?

A: We accept T/T , Paypal , western union .
