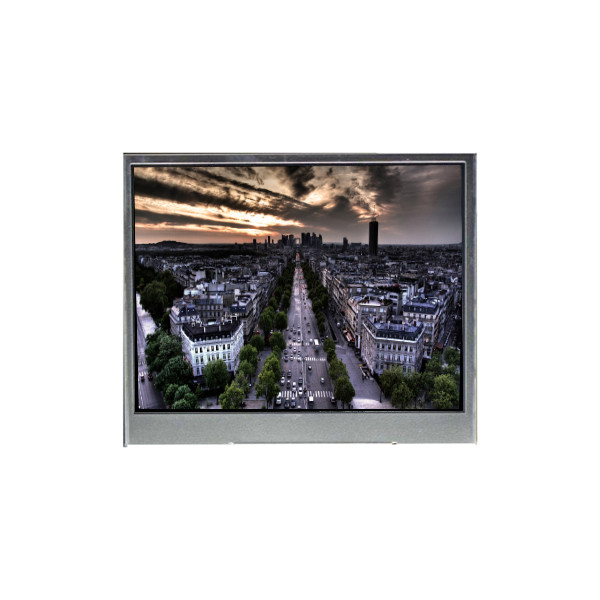

BF050QHQ-100 5.0 inch LCD screen TFT LCD Display LCD PANEL

Brand Name:	B0E
Model Number:	BF050QHQ-100
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

BF050QHQ-100

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

540(RGB)×960, QHD 221PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

61.965(W)×110.16(H) Mm

Color Depth:

16.2M 72%NTSC

Application:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

BF050QHQ-100 5.0 inch LCD screen TFT LCD Display LCD PANEL

BF050QHQ-100 LCD Panel Product details :

Brand	BOE
Model P/N	BF050QHQ-100
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	540(RGB)×960, qHD 221PPI
Pixel Format	RGB Vertical Stripe
Active Area	61.965(W)×110.16(H) mm
Outline Size	64.87(W)×117.9(H)×1(D) mm
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	30 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	FFS, Normally Black, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	4.3% (Typ.)(with Polarizer)
Color Depth	16.7M 72%NTSC
Backlight	No B/L
Used for	Mobile Phone
Refresh Rate	-
Touchscreen	Without
Driver IC list	Suggest COG NT35516
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
BF050QHQ-100 5.0 inch LCD screen TFT LCD Display LCD PANEL

BF050QHQ-100 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

BF050QHQ-100 LCD Panel Shipping and Package :

BF050QHQ-100 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

BF050QHQ-100 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

BF050QHQ-100 LCD Panel FAQ :

Q: What is the different between original lcd panel and compatible lcd display?

A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .

Q: Do you accept the BF050QHQ-100 sample order?

A: Yes , sample order is welcome.

Q: How to order if I don’t know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
