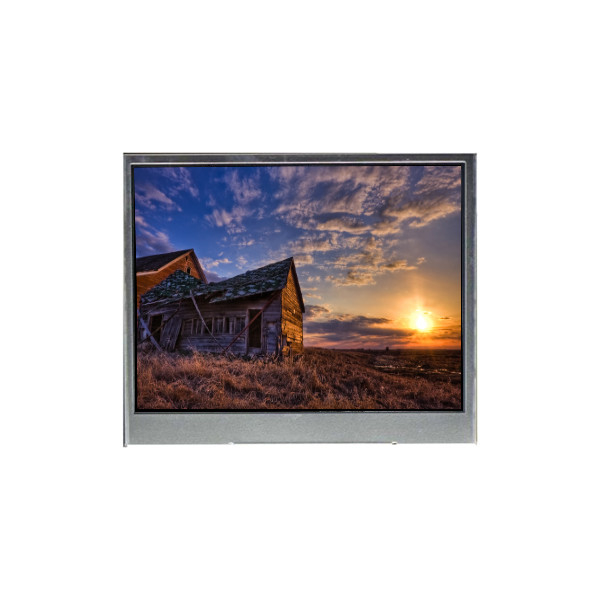

BF050QHE-400 5.0 inch LCD screen TFT LCD Display LCD PANEL
Product Details:
| Place of Origin: | China |
| Brand Name: | B0E |
| Model Number: | BF050QHE-400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | BF050QHE-400 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Full Cell | Resolution: | 540(RGB)×960, QHD 221PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 61.965(W)×110.16(H) Mm |
| Color Depth: | 16.2M 72%NTSC | Application: | Mobile Phone |
Product Description
BF050QHE-400 5.0 inch LCD screen TFT LCD Display LCD PANEL
BF050QHE-400 LCD Panel Product details :
| Brand | BOE |
| Model P/N | BF050QHE-400 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 540(RGB)×960, qHD 221PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 61.965(W)×110.16(H) mm |
| Outline Dim. | 64.87(H)×117.9(V)×0.4(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Plate Thickness | 0.20+0.20 mm |
| Transmittance | 4.3% (Typ.)(with Polarizer) |
| Support Color | 16.2M 72%NTSC |
| Light Source | No B/L |
| Weight | - |
| Designed For | Mobile Phone |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COG Suggest NT35516 |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| BF050QHE-400 5.0 inch LCD screen TFT LCD Display LCD PANEL | |
BF050QHE-400 LCD Panel Pre-order Checklist :
Compatibility Verification:
Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.
Contact Information and Address Details:
Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.
BF050QHE-400 LCD Panel Shipping and Package :
BF050QHE-400 LCD Panel Delivery Details :
Dispatch Timeframe:
Your ordered items will be dispatched within 7 working days following confirmation of payment.
Shipping Options:
The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.
Additional Charges for Remote Areas:
If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.
BF050QHE-400 LCD Panel After-Sales Service Policy :
Return Policy:
We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.
Warranty Coverage:
This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.
Warranty Void Conditions:
Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.
Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.
BF050QHE-400 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
