LCD Screen Display Panel
>

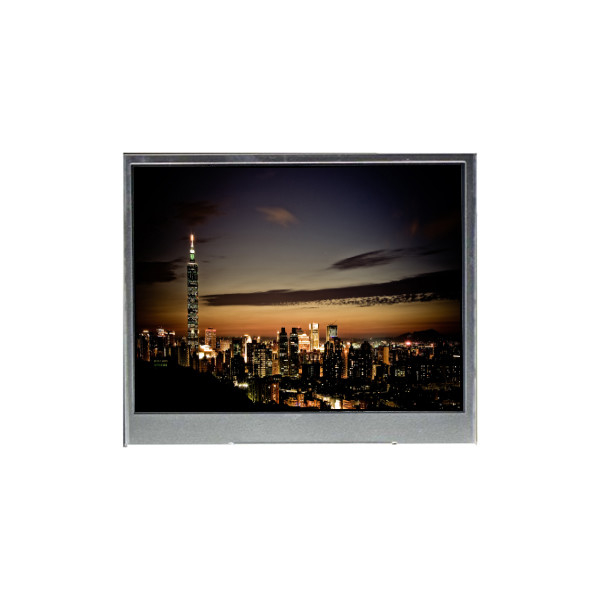

M236HGJ-P02 23.6 inch LCD screen TFT LCD Display LCD panel

M236HGJ-P02 23.6 inch LCD screen TFT LCD Display LCD panel

Brand Name: Chimei Innolux
Model Number: M236HGJ-P02
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Model Name:
M236HGJ-P02
Diagonal Size:
23.6"
Panel Type:
A-Si TFT-LCD, CELL , FOB
Resolution:
1920(RGB)×1080, FHD 93PPI
Pixel Format:
RGB Vertical Stripe
Active Area:
521.28(W)×293.22(H) Mm
Color Depth:
16.7M 72% NTSC
Application:
Desktop Monitor
Interface Type:
LVDS (2 Ch, 8-bit) , 30 Pins Connector
Environment:
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
Supply Ability:
100000 Unit/Units per Month
Product Description

M236HGJ-P02 23.6 inch LCD screen TFT LCD Display LCD panel



M236HGJ-P02 LCD Panel Product details :



Brand Chimei Innolux
Model P/N M236HGJ-P02
Diagonal Size 23.6"
Panel Type a-Si TFT-LCD, CELL , FOB
Resolution 1920(RGB)×1080, FHD 93PPI
Pixel Format RGB Vertical Stripe
Active Area 521.28(W)×293.22(H) mm
Bezel Opening -
Outline Dim. 534.56 × 307.3 × 1.43 (H×V×D)
Treatment Antiglare (Haze 25%), Hard coating (3H)
Luminance 0 cd/m²
Contrast Ratio 1000 : 1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 1.5/3.5 (Typ.)(Tr/Td) ms
Viewing Angle 85/85/80/80 (Typ.)(CR≥10)
Operating Mode TN, Normally White, Transmissive
Glass Thickness 0.50+0.50 mm
Transmissivity 5.95% (Typ.)(with Polarizer)
Support Color 16.7M 72% NTSC
Light Source No B/L
Weight 505/525g (Typ./Max.)
Designed For Desktop Monitor
Frame Rate 75Hz
Touch Panel Without
Driver IC list Built-in COF 6 source COF + 3 gate COG chips
Interface Type LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply 5.0V (Typ.)
Environment Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C



M236HGJ-P02 LCD Panel Pre-order Checklist :

Compatibility Verification:
Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:
Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.


M236HGJ-P02 LCD Panel Shipping and Package :

M236HGJ-P02 23.6 inch LCD screen TFT LCD Display LCD panel 0

M236HGJ-P02 LCD Panel Delivery Details :

Dispatch Timeframe:
Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:
The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:
If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

M236HGJ-P02 LCD Panel After-Sales Service Policy :

Return Policy:
We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:
This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:
Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

M236HGJ-P02 LCD Panel FAQ :


Q: Can I pay my order of M236HGJ-P02 via credit card ?

A: Yes!you can use your credit card through your Paypal account.



Q: Can you give me a discount if I need a large quantity of M236HGJ-P02 ?

A: Of course!If you make a large order, we will give you a discount.



Q: Do you accept sample orders of M236HGJ-P02 ?

A: Of course!sample order is welcome !



Q: How can I trace my order of M236HGJ-P02 ?

A: we will give you tracking number then you can trace your order from website.
