LCD Screen Display Panel

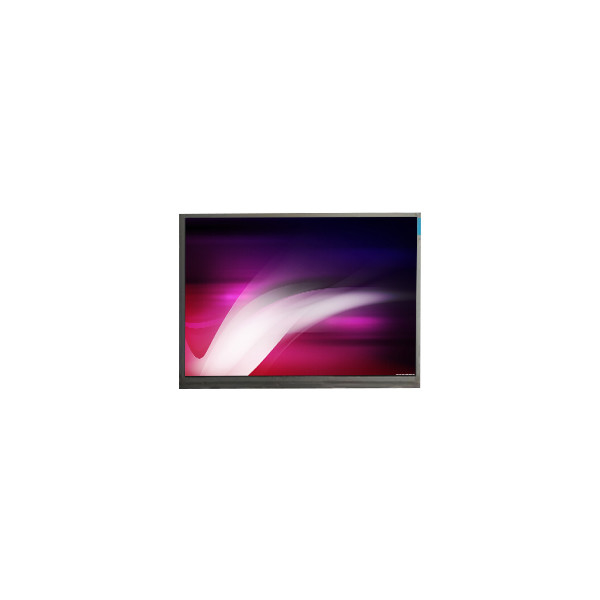

LW850AT9301 8.5 inch LCD screen TFT LCD Display LCD panel

All Category

Floor Standing Digital Signage

LW850AT9301 8.5 inch LCD screen TFT LCD Display LCD panel

Brand Name:	Chimei Innolux
Model Number:	LW850AT9301
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LW850AT9301

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 109PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

184.8(W)×110.88(H) Mm

Color Depth:

16.2M 50% NTSC

Application:

Digital Photo Frame ，Portable DVD Player

Interface Type:

Parallel RGB (1 Ch, 8-bit) , 40 Pins FP

Environment:

Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

LW850AT9301 8.5 inch LCD screen TFT LCD Display LCD panel

LW850AT9301 LCD Panel Product details :

Brand	Chimei Innolux
Model P/N	LW850AT9301
Diagonal Size	8.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 109PPI
Pixel Format	RGB Vertical Stripe
Active Area	184.8(W)×110.88(H) mm
Bezel Opening	188.0(W)×114.08(H) mm
Outline Dim.	206.1(W)×124.48(H)×8.5(D)
Treatment	Antiglare (Haze 25%)
Luminance	270 (Typ.)(cd/m²)
Contrast Ratio	300 : 1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	15/35 (Typ.)(Tr/Td) ms
Viewing Angle	70/70/70/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.2M 50% NTSC
Light Source	WLED , 15K hours , No Driver
Weight	243.5g (Typ.)
Designed For	Digital Photo Frame ,Portable DVD Player
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 8-bit) , 40 pins FP
Power Supply	3.3V (Typ.)
Environment	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

LW850AT9301 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

LW850AT9301 LCD Panel Shipping and Package :

LW850AT9301 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

LW850AT9301 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

LW850AT9301 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of LW850AT9301 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of LW850AT9301 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of LW850AT9301 ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .
