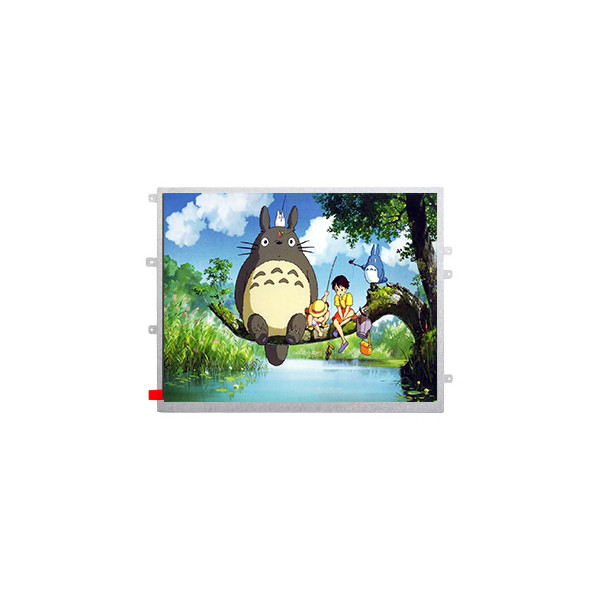

1024*768 TM097TFH02 9.7 inch LCD screen TFT LCD panel

Brand Name:	TIANMA
Model Number:	TM097TFH02
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM097TFH02

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, FOB

Resolution:

1024(RGB)×768, XGA 132PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

196.608(W)×147.456(H) Mm

Color Depth:

262K 50%NTSC

Application:

Netbook PC

Signal Interface:

LVDS (1 Ch, 6-bit), 30 Pins Connector

Environment:

Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

1024*768 TM097TFH02 9.7 inch LCD screen TFT LCD panel

TM097TFH02 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM097TFH02
Diagonal Size	9.7"
Panel Type	a-Si TFT-LCD, CELL, FOB
Resolution	1024(RGB)×768, XGA 132PPI
Pixel Format	RGB Vertical Stripe
Active Area	196.608(W)×147.456(H) mm
Bezel Opening	-
Outline Size	205.9(W)×158.1(H)×1.43(D) mm
Surface	Clear
Brightness	0 cd/m²
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	70/60/70/70 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	9 o'clock
Response Time	20 (Typ.)(Tr+Td)
Glass Depth	0.50+0.50 mm
Transmissivity	5.6% (Typ.)(with Polarizer)
Display Colors	262K 50%NTSC
Lamp Type	No B/L, Without Driver
Frequency	60Hz
Touch Screen	Without
Driver IC	COG Built-in 1 source + 2 gate chips
Shape Style	-
Application	Netbook PC
Signal Interface	LVDS (1 ch, 6-bit), 30 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C

TM097TFH02 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

TM097TFH02 LCD Panel Shipping and Package :

TM097TFH02 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

TM097TFH02 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

TM097TFH02 LCD Panel FAQ :

Q: How do you ship my goods TM097TFH02 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of TM097TFH02 ?

A: 90days warranty .

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of LCD panel TM097TFH02 at a very low value ?

A: Yes , we can . pls inform us before shipping .
