LCD Screen Display Panel

TM050YYSA03 5.0 inch LCD screen 480*800 TFT LCD Display LCD panel

All Category

Floor Standing Digital Signage

Stretched Bar LCD Display

chance

info@yongs-hk.com

86-18575563918

Contact Now

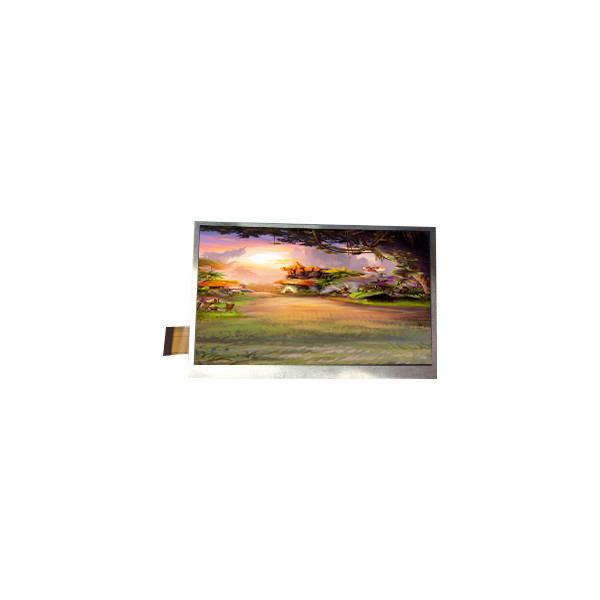

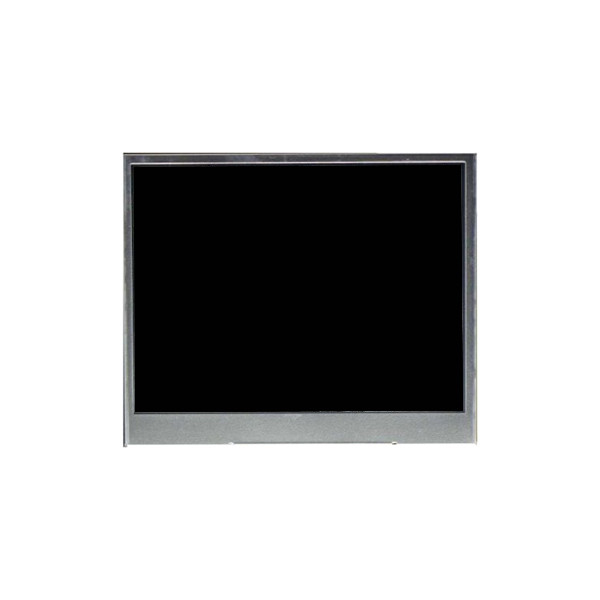

TM050YYSA03 5.0 inch LCD screen 480*800 TFT LCD Display LCD panel

Brand Name:	TIANMA
Model Number:	TM050YYSA03
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM050YYSA03

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Full Cell

Resolution:

480(RGB)×800, WVGA 188PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

64.8(W)×108(H) Mm

Color Depth:

16.7M 60%NTSC

Application:

Mobile Phone

Response Time:

25 (Typ.)(Tr+Td)

Transmissivity:

4.7% (Typ.)(with Polarizer)

Supply Ability:

100000 Unit/Units per Month

Product Description

TM050YYSA03 5.0 inch LCD screen 480*800 TFT LCD Display LCD panel

TM050YYSA03 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM050YYSA03
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, CELL, Full Cell
Resolution	480(RGB)×800, WVGA 188PPI
Pixel Format	RGB Vertical Stripe
Active Area	64.8(W)×108(H) mm
Bezel Opening	-
Outline Size	68(W)×115.9(H)×0.5(D) mm
Brightness	0 cd/m²
Viewing Angle	70/70/70/60 (Typ.)(CR≥10)
Best View on	6 o'clock
Glass Depth	0.25+0.25 mm
Display Colors	16.7M 60%NTSC
Frequency	-
Weight	-
Surface	Without Polarizer
Contrast Ratio	500:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	25 (Typ.)(Tr+Td)
Transmissivity	4.7% (Typ.)(with Polarizer)
Lamp Type	No B/L
Touch Screen	Without
Application	Mobile Phone
Driver IC	COGSuggest NT35510
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C

TM050YYSA03 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

TM050YYSA03 LCD Panel Shipping and Package :

TM050YYSA03 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

TM050YYSA03 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

TM050YYSA03 LCD Panel FAQ :

Q: Do you accept sample orders of TM050YYSA03 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of TM050YYSA03 vai credit card?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of TM050YYSA03 ?

A: The order will be shipped within 2-3 working days after received your payment.
