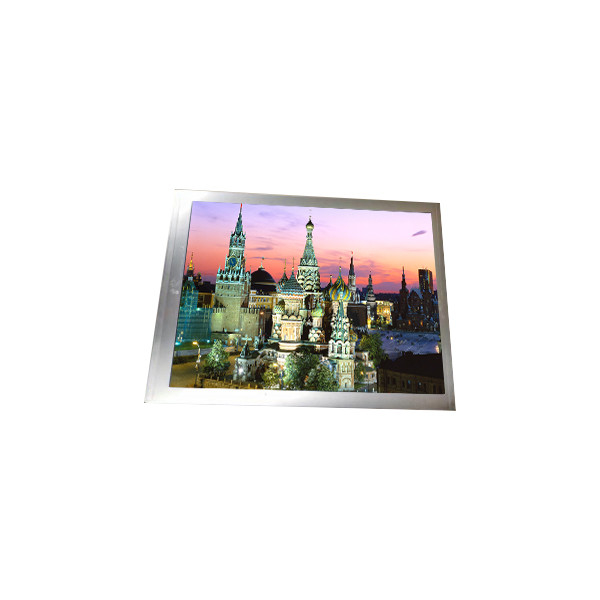

DJ070NA-03A 7.0 inch LCD screen 800*480 TFT LCD Display

Brand Name:	Chimei Innolux
Model Number:	DJ070NA-03A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

DJ070NA-03A

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 134PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

154.08(W)×85.92(H) Mm

Color Depth:

262K/16.7M 50% NTSC

Application:

Automotive Display

Contrast Ratio:

500:1 (Typ.) (TM)

Response Time:

10/15 (Typ.)(Tr/Td)

Supply Ability:

100000 Unit/Units per Month

Product Description

DJ070NA-03A 7.0 inch LCD screen 800*480 TFT LCD Display

DJ070NA-03A LCD Panel Product details :

Brand	Chimei Innolux
Model P/N	DJ070NA-03A
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 134PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.08(W)×85.92(H) mm
Bezel Opening	156.7(W)×89.1(H) mm
Outline Dim.	164.9(W)×100(H) ×6(D) mm
Treatment	Antiglare
Luminance	400 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	10/15 (Typ.)(Tr/Td)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10
Operating Mode	TN, Normally White, Transmissive
Support Color	262K/16.7M 50% NTSC
Light Source	3S9P WLED , 20K hours , Without Driver
Weight	150g (Max.)
Designed For	Automotive Display
Frame Rate	-
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC
Power Supply	3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C

DJ070NA-03A LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

DJ070NA-03A LCD Panel Shipping and Package :

DJ070NA-03A LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

DJ070NA-03A LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

DJ070NA-03A LCD Panel FAQ :

Q: Can You declare my order of DJ070NA-03A to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can I pay my order of DJ070NA-03A via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of DJ070NA-03A ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of DJ070NA-03A ?

A: Of course!sample order is welcome !
