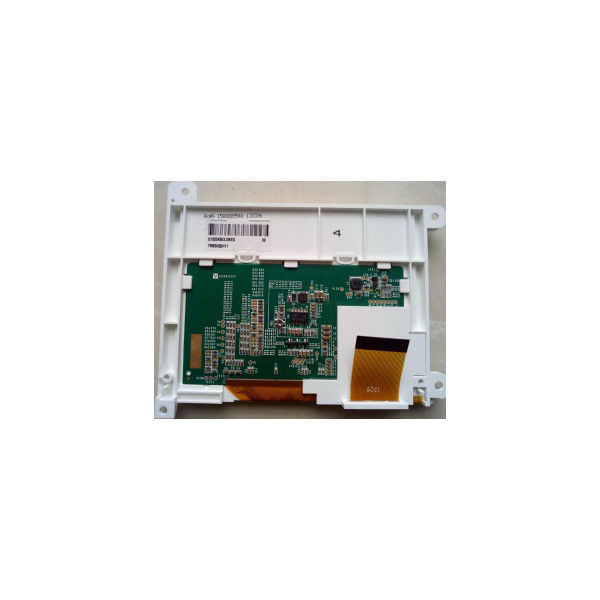

TM050QDH11 5.0 inch LCD screen TFT LCD Display For VOIP Phone

Brand Name:	TIANMA
Model Number:	TM050QDH11
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM050QDH11

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 160PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

101.568(W)×76.176(H) Mm

Color Depth:

262K 50%NTSC

Application:

VOIP Phone

Interface Type:

Parallel RGB (1 Ch, 6-bit) + SPI, 45 PinsFPC

Environment:

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

TM050QDH11 5.0 inch LCD screen TFT LCD Display For VOIP Phone

TM050QDH11 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM050QDH11
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 160PPI
Pixel Format	RGB Vertical Stripe
Active Area	101.568(W)×76.176(H) mm
Bezel Opening	-
Outline Dim.	117.35(H)×88.43(V)×15(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	20 (Typ.)(Tr+Td)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 50%NTSC
Light Source	WLED [3S5P], 50K hours, With LED Driver
Weight	86.0±4.3g
Designed For	VOIP Phone
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 6-bit) + SPI, 45 pinsFPC
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C

TM050QDH11 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

TM050QDH11 LCD Panel Shipping and Package :

TM050QDH11 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

TM050QDH11 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

TM050QDH11 LCD Panel FAQ :

Q: Do you accept sample orders of TM050QDH11 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of TM050QDH11 vai credit card?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of TM050QDH11 ?

A: The order will be shipped within 2-3 working days after received your payment.
