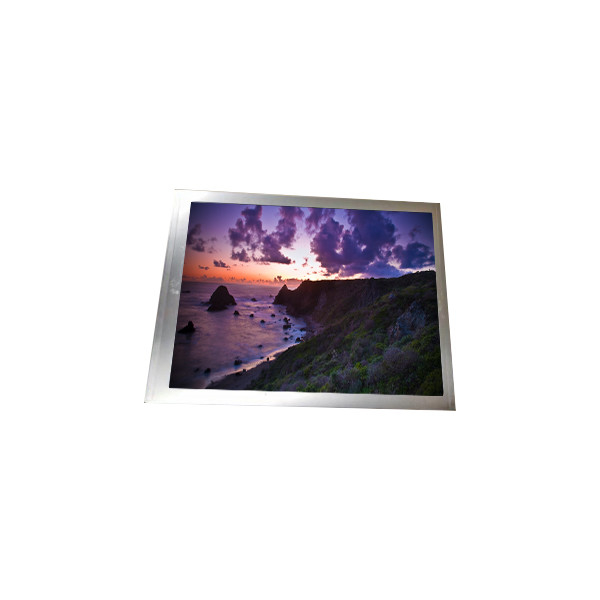

N133HSE-DB2 13.3 inch LCD screen TFT LCD Display For Laptop

All Category

Floor Standing Digital Signage

N133HSE-DB2 13.3 inch LCD screen TFT LCD Display For Laptop

Brand Name:	Chimei Innolux
Model Number:	N133HSE-DB2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

N133HSE-DB2

Diagonal Size:

13.3"

Panel Type:

A-Si TFT-LCD, CELL , FOB

Resolution:

1920(RGB)×1080, FHD 166PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

293.76(W)×165.24(H) Mm

Color Depth:

16.7M 68% NTSC

Application:

Laptop

Power Supply:

3.3V (Typ.)

Environment:

Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

N133HSE-DB2 13.3 inch LCD screen TFT LCD Display For Laptop

N133HSE-DB2 LCD Panel Product details :

Brand	Chimei Innolux
Model P/N	N133HSE-DB2
Diagonal Size	13.3"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	1920(RGB)×1080, FHD 166PPI
Pixel Format	RGB Vertical Stripe
Active Area	293.76(W)×165.24(H) mm
Bezel Opening	-
Outline Dim.	301.97(W)×175.19(H)×1.07(D) mm
Treatment	Glare (Haze 0%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	14/11 (Typ.)(Tr/Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	AAS, Normally Black, Transmissive
Plate Thickness	0.40+0.40 mm
Transmittance	4.15% (Typ.)(with Polarizer)
Support Color	16.7M 68% NTSC
Light Source	No B/L , With LED Driver
Form Style	-
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	Without
	COG Built-in 6 source + 2 gate chips
Interface Type	eDP (2 Lanes) , 30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C

N133HSE-DB2 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

N133HSE-DB2 LCD Panel Shipping and Package :

N133HSE-DB2 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

N133HSE-DB2 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

N133HSE-DB2 LCD Panel FAQ :

Q: Can You declare my order of N133HSE-DB2 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of N133HSE-DB2 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of N133HSE-DB2 ?

A: Of course!If you make a large order, we will give you a discount.
