LCD Screen Display Panel

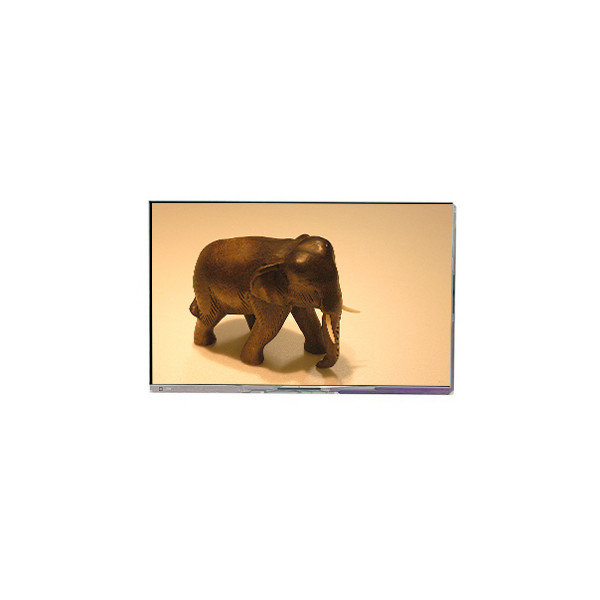

ZE070NA-03B 7.0 inch LCD screen 800*480 TFT LCD Display

All Category

Floor Standing Digital Signage

ZE070NA-03B 7.0 inch LCD screen 800*480 TFT LCD Display

Brand Name:	Innolux
Model Number:	ZE070NA-03B
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

ZE070NA-03B

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, COG

Resolution:

800(RGB)×480, WVGA 134PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

154.08(W)×85.92(H) Mm

Color Depth:

16.7M NTSC

Application:

Digital Photo Frame、Portable DVD Player

Frequency:

Surface:

Antiglare

Supply Ability:

100000 Unit/Units per Month

Product Description

ZE070NA-03B 7.0 inch LCD screen 800*480 TFT LCD Display

ZE070NA-03B LCD Panel Product details :

Brand	Innolux
Model P/N	ZE070NA-03B
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, CELL, COG
Resolution	800(RGB)×480, WVGA 134PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.08(W)×85.92(H) mm
Bezel Opening	-
Outline Size	162.5(W)×96.62(H)×1.43(D) mm
Brightness	0 cd/m²
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Best View on	-
Glass Depth	0.50+0.50 mm
Display Colors	16.7M NTSC
Frequency	60Hz
Weight	44g (Typ.)
Surface	Antiglare
Contrast Ratio	500:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	10/15 (Typ.)(Tr/Td)
Transmissivity	5.11% (Typ.)(with Polarizer)
Lamp Type	No B/L
Touch Screen	Without
Application	Digital Photo Frame,Portable DVD Player
Driver IC	COGBuilt-in 1 source + 1 gate chips
Signal Interface	TTL (1 ch, 8-bit)
Environment	Operating Temp.: -20 ~ 60 °C ;Storage Temp.: -30 ~ 70 °C

ZE070NA-03B LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

ZE070NA-03B LCD Panel Shipping and Package :

ZE070NA-03B LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

ZE070NA-03B LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

ZE070NA-03B LCD Panel FAQ :

Q: Can I pay my goods ZE070NA-03B by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How do you ship my goods ZE070NA-03B ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: What happen if the ZE070NA-03B I receive can't work ?

A: The ZE070NA-03B will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: Can you give me a discount if I need a large quantity of ZE070NA-03B ?

A: Of course!If you make a large order, we will give you a discount.
