Industrial LCD Panel Display

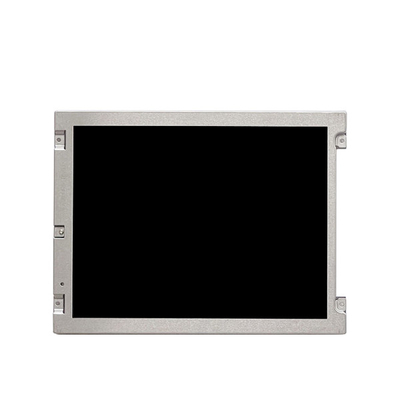

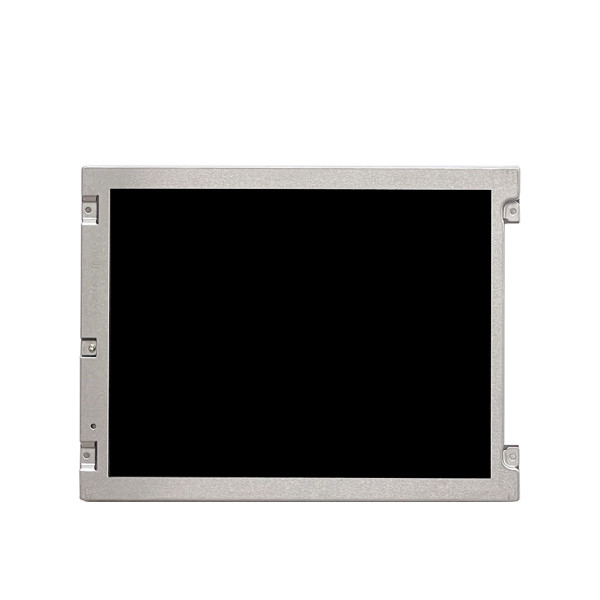

NL8060BC26-35BD 10.4 inch LCD screen TFT LCD Display For Industrial

All Category

Floor Standing Digital Signage

NL8060BC26-35BD 10.4 inch LCD screen TFT LCD Display For Industrial

Brand Name:	NLT
Model Number:	NL8060BC26-35BD
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

NL8060BC26-35BD

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×600, SVGA 96PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

211.2(W)×158.4(H) Mm

Color Depth:

262K/16.7M 40%NTSC

Application:

Industrial

Signal Type:

LVDS (1 Ch, 6/8-bit), Connector20 Pins

Voltage Supply:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

NL8060BC26-35BD 10.4 inch LCD screen TFT LCD Display For Industrial

NL8060BC26-35BD LCD Panel Product details :

Brand	NLT
Model P/N	NL8060BC26-35BD
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 96PPI
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.4(H) mm
Bezel Opening	-
Outline (mm)	243×185.1×13.2 (H×V×D)
Treatment	Anti Fingerprint + Antiglare, Hard coating (2H)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	900 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	3/15 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K/16.7M 40%NTSC
Backlight	3 stringsWLED, 70K hours, Optional
Mass	600/650g (Typ./Max.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	PCAP, Air Bonding
Signal Type	LVDS (1 ch, 6/8-bit), Connector20 pins
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)

NL8060BC26-35BD LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

NL8060BC26-35BD LCD Panel Shipping and Package :

NL8060BC26-35BD LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

NL8060BC26-35BD LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

NL8060BC26-35BD LCD Panel FAQ :

Q: Do you accept sample orders of NL8060BC26-35BD ?

A: Of course!sample order is welcome !

Q: Can I pay my order of NL8060BC26-35BD via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: How long will I receive my goods NL8060BC26-35BD ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
