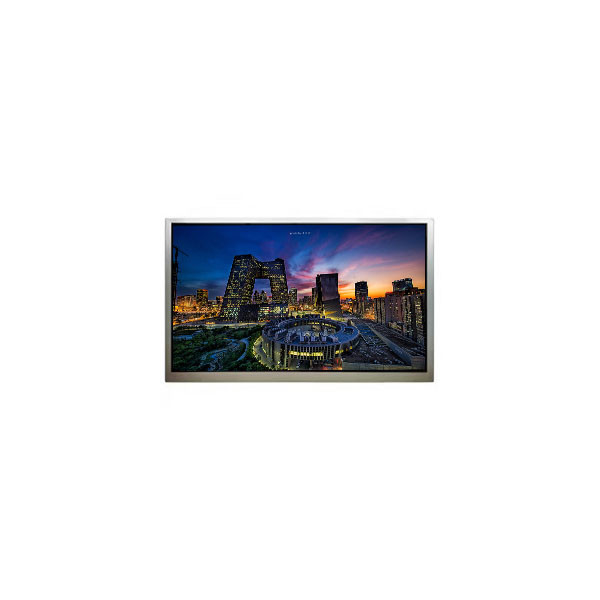

HSD070IDW3-A10-0299 7.0 inch LCD screen 800*480 TFT LCD Display

Brand Name:	HannStar
Model Number:	HSD070IDW3-A10-0299
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD070IDW3-A10-0299

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, FOG

Resolution:

800(RGB)×480, WVGA 134PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

153.6(W)×86.64(H) Mm

Color Depth:

6 O'clock

Application:

Digital Photo Frame、Portable DVD Player

Plate Thickness:

0.50+0.50 Mm

Transmittance:

6.27% (Typ.)(with Polarizer)

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD070IDW3-A10-0299 7.0 inch LCD screen 800*480 TFT LCD Display

HSD070IDW3-A10-0299 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD070IDW3-A10-0299
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, CELL, FOG
Resolution	800(RGB)×480, WVGA 134PPI
Pixel Format	RGB Vertical Stripe
Active Area	153.6(W)×86.64(H) mm
Bezel Opening	-
Outline Dim.	162.5(H)×97.89(V)×1.43(D) mm
Treatment	-
Luminance	0 cd/m²
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	5/20 (Typ.)(Tr/Td)
Viewing Angle	70/70/50/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Plate Thickness	0.50+0.50 mm
Transmittance	6.27% (Typ.)(with Polarizer)
Support Color	16.7M 50%NTSC
Light Source	No B/L
Weight	-
Designed For	Digital Photo Frame,Portable DVD Player
Frame Rate	60Hz
Touch Panel	Without
D-IC Detail	COG Built-in 1 source + 1 gate chips
Interface Type	Parallel RGB (1 ch, 8-bit), 60 pinsFPC
Power Supply	3.3/10/15/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

HSD070IDW3-A10-0299 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

HSD070IDW3-A10-0299 LCD Panel Shipping and Package :

HSD070IDW3-A10-0299 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

HSD070IDW3-A10-0299 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

HSD070IDW3-A10-0299 LCD Panel FAQ :

Q: How can I trace my order of HSD070IDW3-A10-0299 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of HSD070IDW3-A10-0299 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of HSD070IDW3-A10-0299 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of HSD070IDW3-A10-0299 ?

A: Of course!If you make a large order, we will give you a discount.
