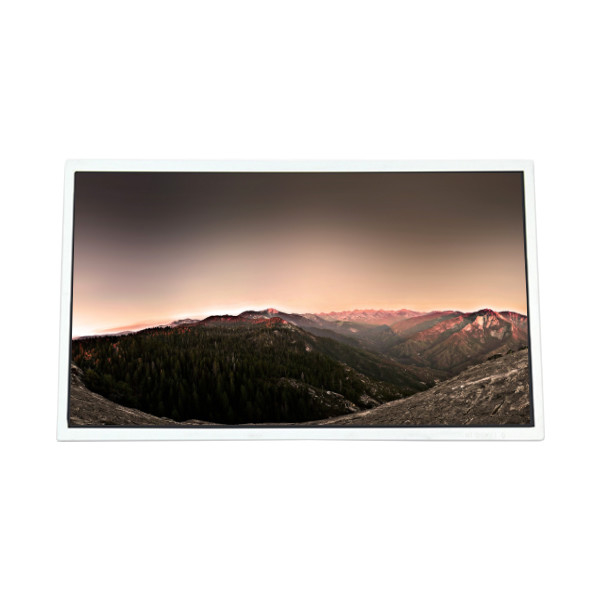

MT207FHM-N20 20.7 inch LCD screen TFT LCD Display

All Category

Floor Standing Digital Signage

MT207FHM-N20 20.7 inch LCD screen TFT LCD Display

Brand Name:	BOE
Model Number:	MT207FHM-N20
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

MT207FHM-N20

Diagonal Size:

20.7"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 106PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

457.92(W)×257.58(H) Mm

Color Depth:

16.7M 72%NTSC

Application:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

MT207FHM-N20 20.7 inch LCD screen TFT LCD Display

MT207FHM-N20 LCD Panel Product details :

Brand	BOE
Model P/N	MT207FHM-N20
Diagonal Size	20.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 106PPI
Pixel Format	RGB Vertical Stripe
Active Area	457.92(W)×257.58(H) mm
Bezel Opening	461.92(W)×261.58(H) mm
Outline Dim.	477.7(H)×277.8(V)×10.6(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	200 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	1.5/3.5 (Typ.)(Tr/Td)
Viewing Angle	45/45/25/40 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 72%NTSC
Light Source	WLED [3 strings], 30K hours, W/O Driver
Weight	1.63Kgs (Typ.)
Designed For	Desktop Monitor
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

MT207FHM-N20 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

MT207FHM-N20 LCD Panel Shipping and Package :

MT207FHM-N20 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

MT207FHM-N20 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

MT207FHM-N20 LCD Panel FAQ :

Q: Do you accept sample orders of MT207FHM-N20 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of MT207FHM-N20 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How to make payment of MT207FHM-N20 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of MT207FHM-N20 ?

A: Of course!sample order is welcome !
