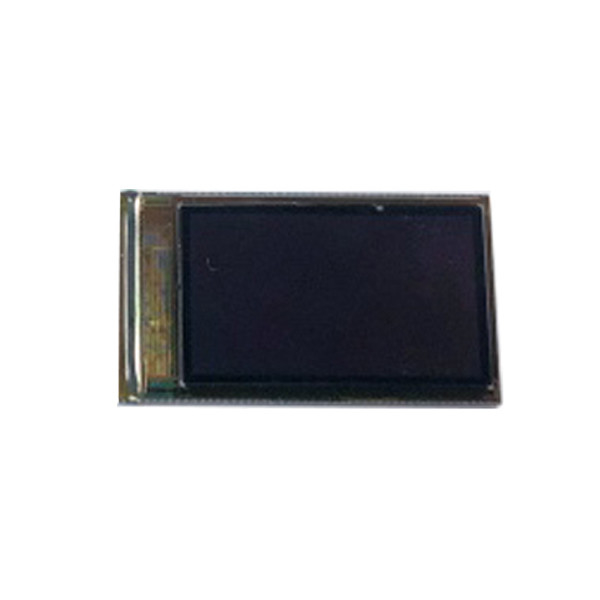

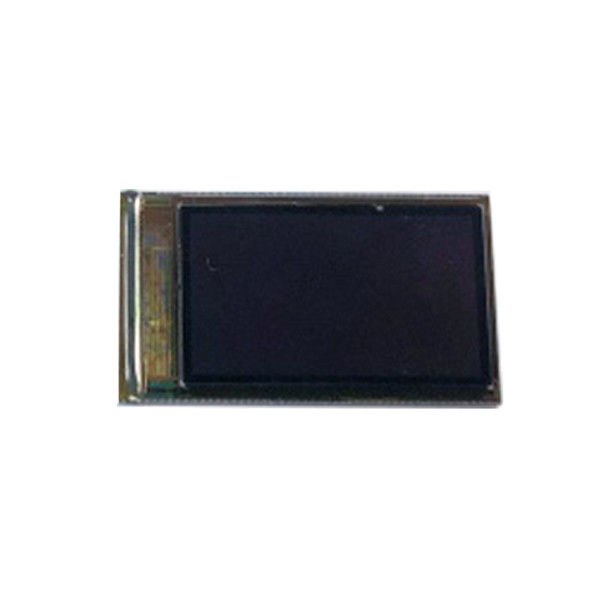

LPM050A229A 5.0 inch LCD screen TFT LCD Display For Mobile Phone

Brand Name:	JDI
Model Number:	LPM050A229A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LPM050A229A

Diagonal Size:

Panel Type:

LTPS TFT-LCD, LCM

Resolution:

720(RGB)×1280, WXGA 294PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

62.1(W)×110.4(H) Mm

Color Depth:

16.7M 70%NTSC

Application:

Mobile Phone

Touch Screen:

In-Cell Touch, I²C

Signal Interface:

MIPI (4 Data Lanes), 40 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LPM050A229A 5.0 inch LCD screen TFT LCD Display For Mobile Phone

LPM050A229A LCD Panel Product details :

Brand	JDI
Model P/N	LPM050A229A
Diagonal Size	5.0"
Panel Type	LTPS TFT-LCD, LCM
Resolution	720(RGB)×1280, WXGA 294PPI
Pixel Format	RGB Vertical Stripe
Active Area	62.1(W)×110.4(H) mm
Bezel Opening	-
Outline Size	64.5(W)×117.83(H)×1.28(D) mm
Surface	Hard coating
Brightness	500 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black
Best View on	Symmetry
Response Time	-
Display Colors	16.7M 70%NTSC
Lamp Type	6S2PWLED, Without Driver
Frequency	60Hz
Touch Screen	In-Cell Touch, I²C
Panel Weight	15.1g (Typ.)
Application	Mobile Phone
Signal Interface	MIPI (4 data lanes), 40 pinsConnector
Input Voltage	1.8/2.5/3.3V (Typ.)(VDDIO/VDDDC/VDDF)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

LPM050A229A LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

LPM050A229A LCD Panel Shipping and Package :

LPM050A229A LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

LPM050A229A LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

LPM050A229A LCD Panel FAQ :

Q: Can I pay my order of LPM050A229A via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of LPM050A229A ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LPM050A229A ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90 days warranty .
