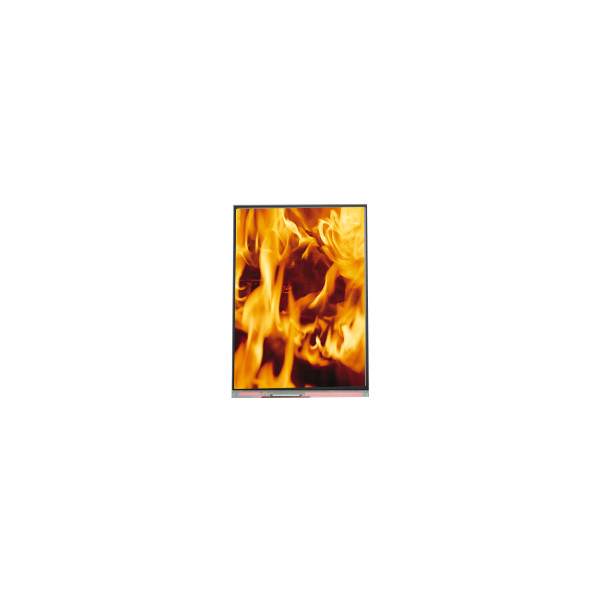

LX055A1BA01 5.5 inch LCD screen TFT LCD Display For Mobile Phone

Brand Name:	Sharp
Model Number:	LX055A1BA01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LX055A1BA01

Diagonal Size:

Panel Type:

CG-Silicon, CELL, Full Cell

Resolution:

1080(RGB)×1920, FHD 403PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

68.04(W)×120.96(H) Mm

Display Colors:

71% NTSC

Application:

Mobile Phone

Work Mode:

New Mode2, Normally Black, Transmissive

Transmissivity:

3.37% (Typ.)(with Polarizer)

Supply Ability:

100000 Unit/Units per Month

Product Description

LX055A1BA01 5.5 inch LCD screen TFT LCD Display For Mobile Phone

LX055A1BA01 LCD Panel Product details :

Brand	Sharp
Model P/N	LX055A1BA01
Diagonal Size	5.5"
Panel Type	CG-Silicon, CELL, Full Cell
Resolution	1080(RGB)×1920, FHD 403PPI
Pixel Format	RGB Vertical Stripe
Active Area	68.04(W)×120.96(H) mm
Bezel Opening	-
Outline(mm)	70.04(W)×127.55(H)×0.3(D)
Luminance	0 (cd/m²)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Good View at	Symmetry
Glass Thickness	0.15+0.15 mm
Color Depth	71% NTSC
Mass	6.60g (Typ.)
Refresh Rate	60Hz
Treatment	Without Polarizer
Contrast Ratio	900 : 1 (Typ.) (TM)
Work Mode	New Mode2, Normally Black, Transmissive
Response	-
Transmissivity	3.37% (Typ.)(with Polarizer)
Backlight	No B/L
Used for	Mobile Phone
Touchscreen	Without
Driver IC list	SuggestCOGNT35595, NT35695, NT35596, R63417, R63315, R63422
Signal Type	MIPI (4 data lanes)
Max. Ratings	Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C
Low Price LCD Display Screen LX055A1BA01 5.5 inch CELL LCD Panel

LX055A1BA01 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

LX055A1BA01 LCD Panel Shipping and Package :

LX055A1BA01 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

LX055A1BA01 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

LX055A1BA01 LCD Panel FAQ :

Q: Can I pay my order of LX055A1BA01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of LX055A1BA01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LX055A1BA01 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90 days warranty .
