LCD Screen Display Panel

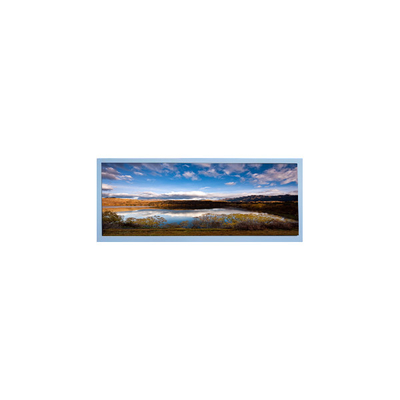

M102AWF2 R3 10.3 inch LCD screen TFT LCD panel For Automotive Display

All Category

Floor Standing Digital Signage

M102AWF2 R3 10.3 inch LCD screen TFT LCD panel For Automotive Display

Brand Name:	IVO
Model Number:	M102AWF2 R3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M102AWF2 R3

Diagonal Size:

10.3"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×720 200PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

243.65(W)×91.37(H) Mm

Display Colors:

16.7M 75%NTSC

Application:

Automotive Display

Luminance:

800 Cd/m² (Typ.)

Contrast Ratio:

1000 : 1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Product Description

M102AWF2 R3 10.3 inch LCD screen TFT LCD panel For Automotive Display

M102AWF2 R3 LCD Panel Product details :

Brand	IVO
Model P/N	M102AWF2 R3
Diagonal Size	10.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×720 200PPI
Pixel Format	RGB Vertical Stripe
Active Area	243.65(W)×91.37(H) mm
Bezel Opening	245.65(W)×94.37(H) mm
Outline(mm)	261.14 × 109.3× 15.8 (H×V×D)
Treatment	Hard coating (3H)
Luminance	800 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	20 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	IPS, Normally Black, Transmissive
Color Depth	16.7M 75%NTSC
Backlight	8S3PWLED, 10K hours, No Driver
Mass	350g (Max.)
Used for	Automotive Display
Refresh Rate	55Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit), 50 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 3.0G (29.4 m/s²)

M102AWF2 R3 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

M102AWF2 R3 LCD Panel Shipping and Package :

M102AWF2 R3 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

M102AWF2 R3 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

M102AWF2 R3 LCD Panel FAQ :

Q: How can I trace my order of M102AWF2 R3 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can you give me a discount if I need a large quantity of M102AWF2 R3 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of M102AWF2 R3 ?

A: Of course!sample order is welcome !

Q: How long is the warranty ?

A: We offer 90days warranty .
