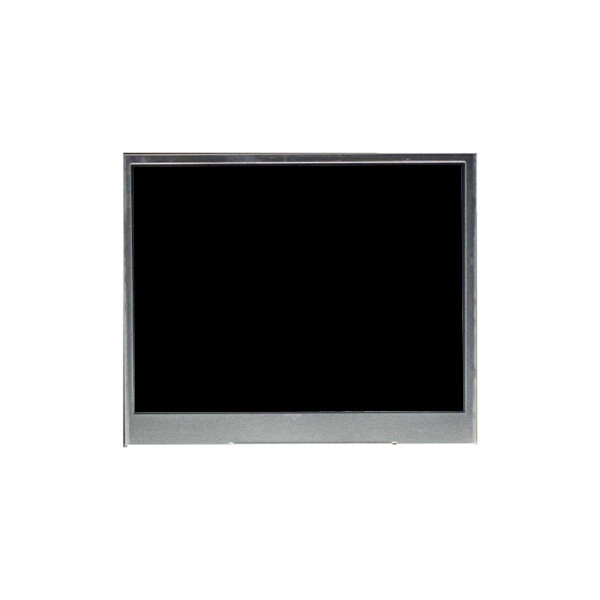

HSD050B8W6-A00 5.0 inch LCD screen 480*854 TFT LCD Display

Brand Name:	HannStar
Model Number:	HSD050B8W6-A00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD050B8W6-A00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

480(RGB)×854, FWVGA 196PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

62.064(W)×110.422(H) Mm

Display Colors:

16.7M 70%NTSC

Application:

Mobile Phone

Color Depth:

16.7M 70%NTSC

Refresh Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD050B8W6-A00 5.0 inch LCD screen 480*854 TFT LCD Display

HSD050B8W6-A00 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD050B8W6-A00
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	480(RGB)×854, FWVGA 196PPI
Pixel Format	RGB Vertical Stripe
Active Area	62.064(W)×110.422(H) mm
Bezel Opening	-
Outline (mm)	65.1×117.9×0.8 (H×V×D)
Treatment	Without Polarizer
Luminance	0 cd/m²
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	16/19 (Typ.)(Tr/Td) ms
Good View at	Symmetry
Work Mode	IPS-Pro, Normally Black, Transmissive
Glass Thickness	0.40+0.40 mm
Transmissivity	15% (Typ.)(without Polarizer)
Color Depth	16.7M 70%NTSC
Backlight	No B/L
Mass	-
Used for	Mobile Phone
Refresh Rate	60Hz
Touchscreen	Without
Driver IC list	Suggest COG NT35510S, OTM8009A, TOM8018B, OTM012A, ILI9806, ILI9806C, ILI9806H, ILI9806E, HX8379A, R68171
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

HSD050B8W6-A00 LCD Panel Pre-order Checklist :

Compatibility Verification:

Prior to placing your order, kindly verify if this LCD screen is compatible with your specific machine model. Should you have any doubts or require assistance, please do not hesitate to reach out to us for clarification.

Contact Information and Address Details:

Please ensure that your phone number, complete address, and zip code are accurate and up to date before proceeding with your order placement.

HSD050B8W6-A00 LCD Panel Shipping and Package :

HSD050B8W6-A00 LCD Panel Delivery Details :

Dispatch Timeframe:

Your ordered items will be dispatched within 7 working days following confirmation of payment.

Shipping Options:

The method of shipping will be determined based on the shipping cost option you select during checkout. Please choose a shipping method that best suits your requirements and budget.

Additional Charges for Remote Areas:

If your delivery address is situated in a remote area, there may be additional charges incurred. We will promptly inform you if any adjustments to the shipping cost are necessary due to the location of your delivery address.

HSD050B8W6-A00 LCD Panel After-Sales Service Policy :

Return Policy:

We offer a 5-day return window without the need for providing reasons. If you wish to return the item within this period, please contact us. Please note that the shipping cost for the return will be covered by the buyer.

Warranty Coverage:

This item is covered by a 90-day warranty. However, certain damages resulting from human error or natural disasters are not included in our warranty coverage. Examples of such exclusions include improper installation, physical damage (such as scratches or broken screens), mishandling, and power surges.

Warranty Void Conditions:

Products sold in our store come with fragile warranty tags. If these tags are tampered with or removed during the warranty period, the warranty will be considered void. Additionally, any disconnection or loss of the item will result in the forfeiture of the warranty, and we will not assume responsibility in such cases.

Please be mindful of these terms and conditions when availing of our after-sales services. Should you have any questions or require assistance, do not hesitate to reach out to us for further clarification.

HSD050B8W6-A00 LCD Panel FAQ :

Q: Do you accept sample orders of HSD050B8W6-A00 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of HSD050B8W6-A00 vai credit card ?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of HSD050B8W6-A00 ?

A: The order will be shipped within 2-3 working days after received your payment.
