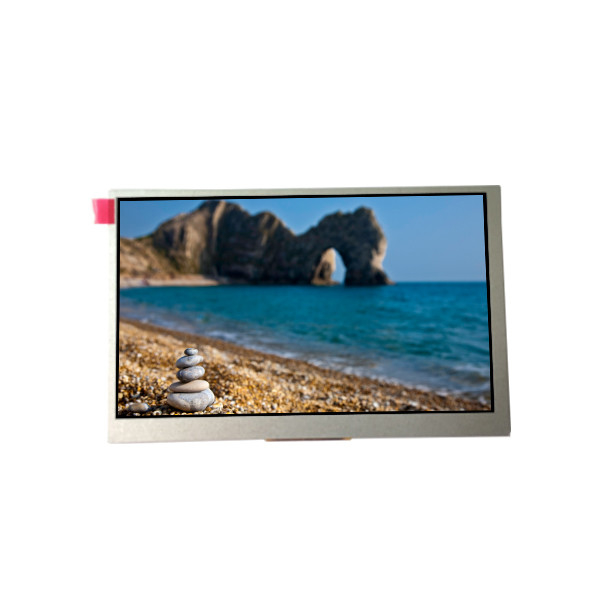

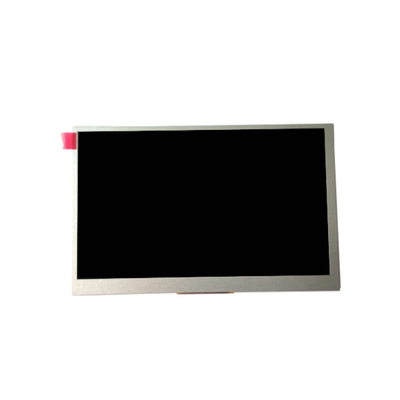

BA070WV4-200 7.0 inch 800*480 LCD SCREEN For Digital Photo Frame
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | BA070WV4-200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | BA070WV4-200 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , Full Cell, Q-CUT (Full Cell) | Resolution: | 800(RGB)×480, WVGA 134PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 154.08(W)×85.92(H) Mm |
| Used For: | Digital Photo Frame、Portable DVD Player | Display Colors: | 16.7M 50%NTSC |
Product Description
BA070WV4-200 7.0 inch 800*480 LCD SCREEN For Digital Photo Frame
BA070WV4-200 LCD Panel Product details :
| Brand | BOE |
| Model P/N | BA070WV4-200 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, CELL , Full Cell, Q-CUT (Full Cell) |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 154.08(W)×85.92(H) mm |
| Outline(mm) | 162.2 × 95.7× 1 (H×V×D) |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 75/75/70/70 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 6.03% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 50%NTSC |
| Backlight | No B/L |
| Used for | Digital Photo Frame,Portable DVD Player |
| Touchscreen | Without |
| Driver IC list | Suggest COG ILI6128B + ILI5960, HX8264-D06 + HX8664-B |
| Signal Type | Parallel RGB (1 ch, 8-bit) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| BA070WV4-200 7.0 inch 800*480 LCD SCREEN For Digital Photo Frame | |
BA070WV4-200 LCD Panel Installation Friendly Reminder:
Please note that an installation guide is not included. We are not liable for any damage resulting from the installation of this accessory. Ensure that you are proficient in installation procedures before placing a bid.
Proper installation of this accessory requires special skills and techniques. We highly recommend seeking the assistance of a qualified technician for installation.
Prior to purchase, please familiarize yourself with the disassembly procedure.
We accept returns only for items in their original condition and strongly advise customers to test the item before proceeding with installation.
Regarding BA070WV4-200 LCD Panel and Our Services:
With over 15 years of experience, we have served more than 10,000 clients across 100 countries, offering professional and responsive service to meet our clients' needs.
We specialize in providing a wide range of LCD panels and touch screens, serving as agents for several reputable LCD brands including Kyocera, KOE, and Nanya. We maintain stocks of Sharp, NEC, Hitachi, AUO, Kyocera, and KOE products that can be shipped within one day.
Our products are known for their high quality and competitive pricing. If you have any requirements or inquiries, please feel free to contact us at any time. We are committed to providing you with the best products and services to meet your needs. Thank you for choosing us!
BA070WV4-200 LCD Panel Shipping and Package :
BA070WV4-200 LCD Panel Shipping Notice :
Import duties, taxes, and charges are not included in the item price or shipping charges.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
We strive to offer you the most reliable and affordable shipping service. However, international delivery times can vary significantly due to factors such as the courier company and local customs procedures. Therefore, shipping times may be longer than usual. We appreciate your patience and understanding during this process.
BA070WV4-200 LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
Q: Do you accept the BA070WV4-200 sample order?
A: Yes , sample order is welcome.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
