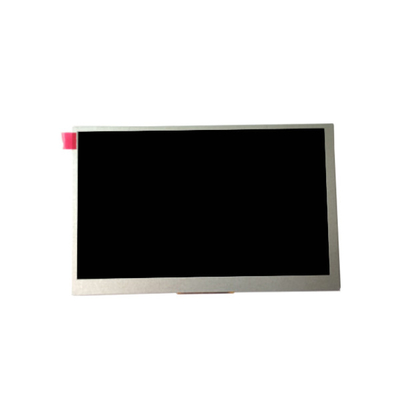

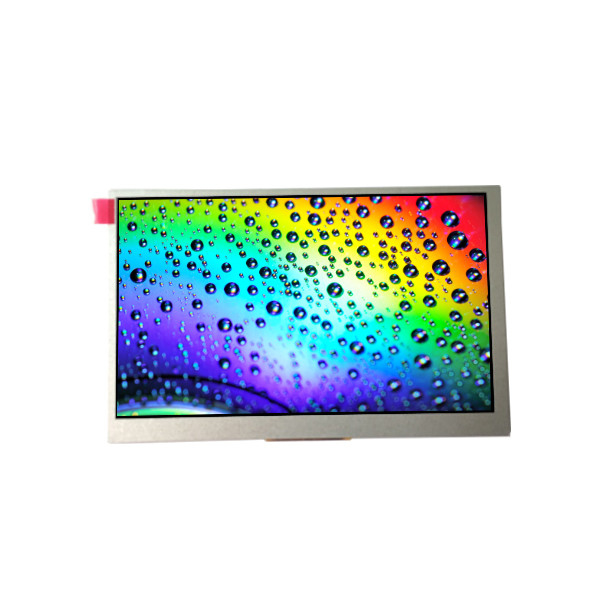

BA070WS2-102 7.0 inch 1024*600 LCD SCREEN DISPLAY MODULE
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | BA070WS2-102 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | BA070WS2-102 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 153.6(W)×90(H) Mm |
| Used For: | Pad & Tablet | Display Colors: | 16.7M 50%NTSC |
Product Description
BA070WS2-102 7.0 inch 1024*600 LCD SCREEN DISPLAY MODULE
BA070WS2-102 LCD Panel Product details :
| Brand | BOE |
| Model P/N | BA070WS2-102 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, CELL , Full Cell, Q-CUT (Full Cell) |
| Resolution | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×90(H) mm |
| Outline Dim. | 161.4(W)×99.6(H)×1(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Response Time | 20 (Typ.)(Tr+Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Plate Thickness | 0.50+0.50 mm |
| Transmittance | 4.9% (Typ.)(with Polarizer) |
| Support Color | 16.7M 50%NTSC |
| Light Source | No B/L |
| Weight | 46.0g |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COG Suggest NT51008 + NT52003, HX8282 + HX8696 |
| Interface Type | Parallel RGB |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| BA070WS2-102 7.0 inch 1024*600 LCD SCREEN DISPLAY MODULE | |
BA070WS2-102 LCD Panel Shipping and Package :
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: How long is the warranty of BA070WS2-102 ?
A: NEW Product warranty is 90 days.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How to order lcd panel BA070WS2-102 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
