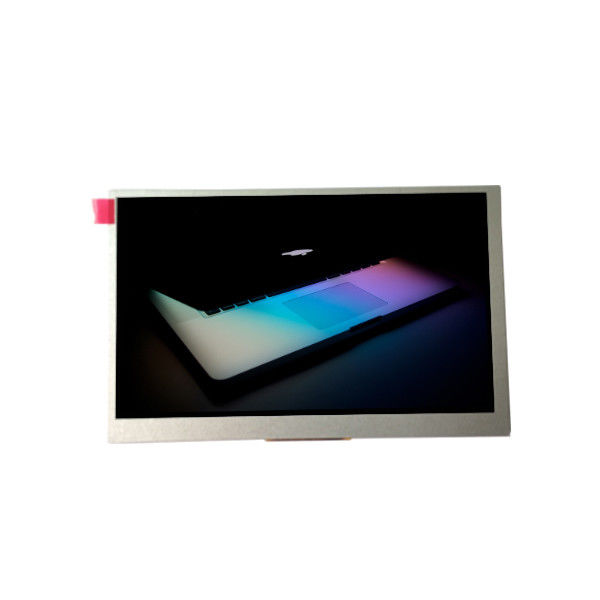

BA070WS1-300 7.0 inch 1024*600 LCD SCREEN DISPLAY PANEL
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | BA070WS1-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | BA070WS1-300 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 153.6(W)×90(H) Mm |
| Used For: | Pad & Tablet、Digital Photo Frame、Portable DVD Player | Display Colors: | 16.7M 50%NTSC |
Product Description
BA070WS1-300 7.0 inch 1024*600 LCD SCREEN DISPLAY PANEL
BA070WS1-300 LCD Panel Product details :
| Brand | BOE |
| Model P/N | BA070WS1-300 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×90(H) mm |
| Bezel Opening | 156.0(W)×93.0(H) mm |
| Outline Dim. | 165.75(W)×105.39(H)×3(D) mm |
| Luminance | 250 cd/m² (Typ.) |
| Viewing Angle | 70/70/65/70 (Typ.)(CR≥10) |
| Support Color | 262K/16.7M 50% NTSC |
| Weight | 110g (Typ.) |
| Frame Rate | 60Hz |
| Treatment | Glare (Haze 0%) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED, 12K hours , W/O Driver |
| Designed For | Pad & Tablet,Digital Photo Frame,Portable DVD Player |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit)40 pins FPC |
| Power Supply | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -10 ~ 60 °C; Storage Temperature: -20 ~ 70 °C |
| BA070WS1-300 7.0 inch 1024*600 LCD SCREEN DISPLAY PANEL | |
BA070WS1-300 LCD Panel Shipping and Package :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of BA070WS1-300 ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel BA070WS1-300 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
