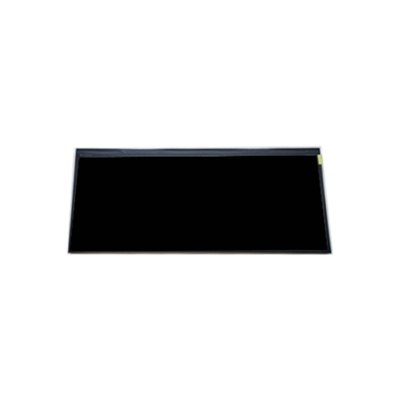

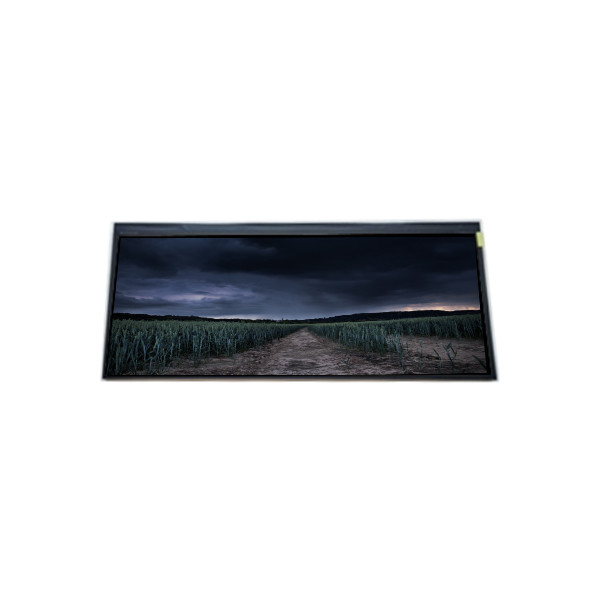

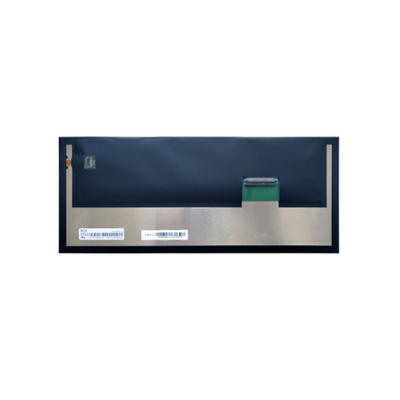

AV123Z7M-L1M 12.3 inch LCD Screen Display LCD MODULE For BOE
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | AV123Z7M-L1M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AV123Z7M-L1M | Diagonal Size: | 12.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×720 167PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 292.032(W)×109.512(H) Mm |
| Application: | Outdoor High Brightness、Automotive Display | Color Depth: | 16.7M 75%NTSC |
Product Description
AV123Z7M-L1M 12.3 inch LCD Screen Display LCD MODULE For BOE
AV123Z7M-L1M LCD Panel Product details :
| Brand | BOE |
| Model P/N | AV123Z7M-L1M |
| Diagonal Size | 12.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 167PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 292.032(W)×109.512(H) mm |
| Outline Size | 302.63(W)×125.61(H)×10.3(D) mm |
| Surface | Hard coating |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Min.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 75%NTSC |
| Lamp Type | 4 stringsWLED, 30K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | In-Cell Touch, I²C |
| Application | Outdoor High Brightness,Automotive Display |
| Signal Interface | LVDS (2 ch, 8-bit), 60 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| AV123Z7M-L1M 12.3 inch LCD Screen Display LCD MODULE For BOE | |
