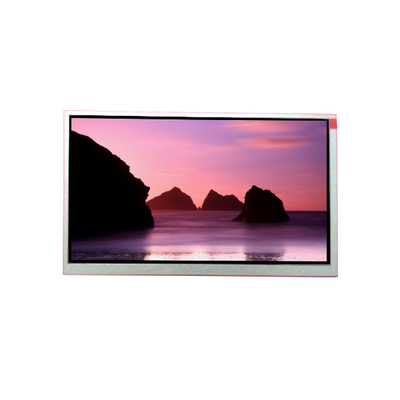

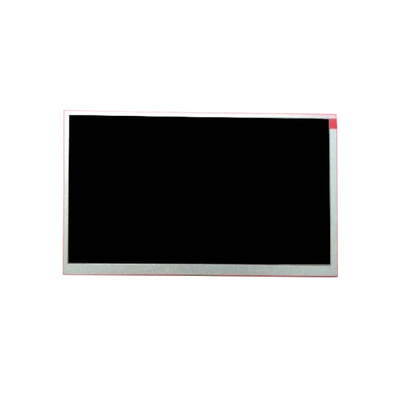

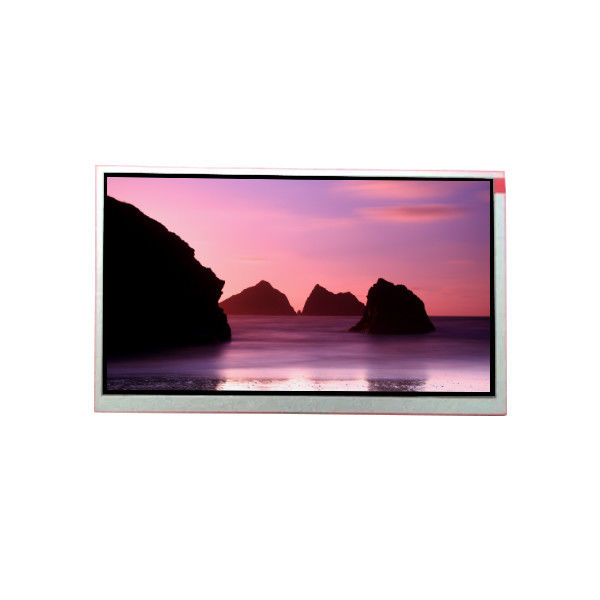

AV090HDE-N12 9.0 inch LCD Screen Display LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | AV090HDE-N12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AV090HDE-N12 | Diagonal Size: | 9.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Full Cell | Resolution: | 1280(RGB)×720, WXGA 163PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 198.72(W)×111.78(H) Mm |
| Application: | Automotive Display | Color Depth: | 16.7M 70%NTSC |
Product Description
AV090HDE-N12 9.0 inch LCD Screen Display LCD Panel
AV090HDE-N12 LCD Panel Product details :
| Brand | BOE |
| Model P/N | AV090HDE-N12 |
| Diagonal Size | 9.0" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 1280(RGB)×720, WXGA 163PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 198.72(W)×111.78(H) mm |
| Bezel Opening | - |
| Outline (mm) | 203.72×120.58×1 (H×V×D) |
| Treatment | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Response | 40/80 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | HADS, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 4.0% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 70%NTSC |
| Backlight | No B/L |
| Mass | - |
| Used for | Automotive Display |
| Refresh Rate | - |
| Touchscreen | Without |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C |
| AV090HDE-N12 9.0 inch LCD Screen Display LCD Panel | |
