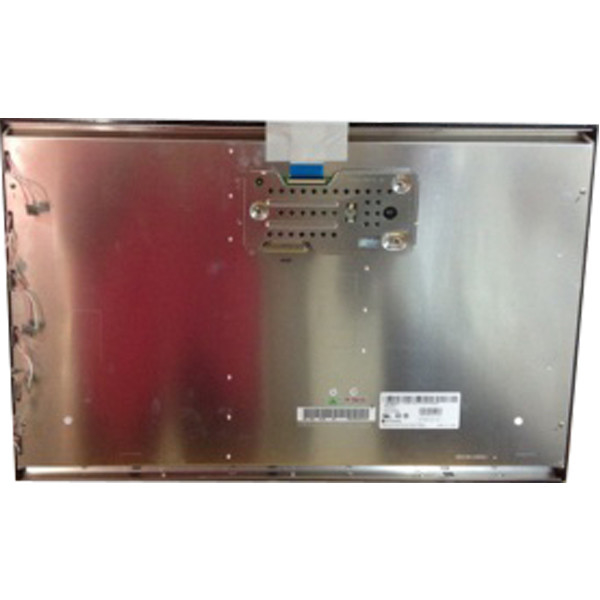

LM240WU3-TLC1 24.0 inch LCD Panel Module for Desktop Monitor

Brand Name:	LG Display
Model Number:	LM240WU3-TLC1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM240WU3-TLC1

Diagonal Size:

24.0"

Resolution:

1920(RGB)×1200, WUXGA 94PPI

Active Area:

518.4(W)×324(H) Mm

Viewing Angle:

85/85/75/85 (Typ.)(CR≥10)

Operating Mode:

TN, Normally White, Transmissive

Support Color:

16.7M 93%NTSC

Light Source:

6 PcsCCFL, 40K Hours, Without Driver

Application:

Desktop Monitor

Interface Type:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM240WU3-TLC1 24.0 inch LCD Panel Module for Desktop Monitor

LM240WU3-TLC1 LCD Panel Product details :

Brand	LG
Model P/N	LM240WU3-TLC1
Diagonal Size	24.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA 94PPI
Pixel Format	RGB Vertical Stripe
Active Area	518.4(W)×324(H) mm
Bezel Opening	522.4(W)×328.0(H) mm
Outline Size	546.4(W)×352(H)×36.3(D) mm
Surface	Glare (Haze 0%), Hard coating (3H)
Brightness	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/75/85 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	5/20 (Typ.)(Tr+Td)
Display Colors	16.7M 93%NTSC
Lamp Type	6 pcsCCFL, 40K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.48/2.60Kgs (Typ./Max.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
