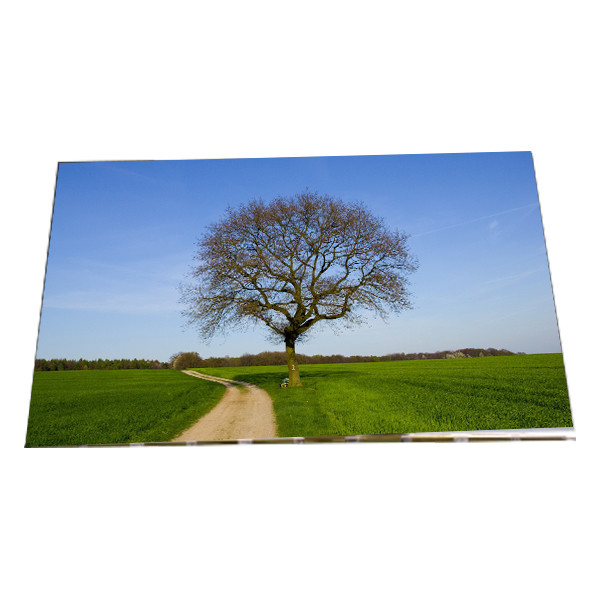

LM240WU3-TLB1 24.0 inch LCD Panel Module for LG

Brand Name:	LG Display
Model Number:	LM240WU3-TLB1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM240WU3-TLB1

Diagonal Size:

24.0"

Resolution:

1920(RGB)×1200, WUXGA 94PPI

Active Area:

518.4(W)×324(H) Mm

Viewing Angle:

80/80/75/85 (Typ.)(CR≥10)

Operating Mode:

TN, Normally White, Transmissive

Support Color:

16.7M 95%NTSC

Light Source:

6 PcsCCFL, 40K Hours, No Driver

Application:

Desktop Monitor

Interface Type:

LVDS (2 Ch, 8-bit), Connector30 Pins

Supply Ability:

100000 Unit/Units per Month

Product Description

LM240WU3-TLB1 24.0 inch LCD Panel Module for LG

LM240WU3-TLB1 LCD Panel Product details :

Brand	LG
Model P/N	LM240WU3-TLB1
Diagonal Size	24.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA 94PPI
Pixel Format	RGB Vertical Stripe
Active Area	518.4(W)×324(H) mm
Bezel Opening	522.4(W)×328.0(H) mm
Outline (mm)	546.4×352×36.3 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	900 : 1 (Typ.) (TM)
Viewing Angle	80/80/75/85 (Typ.)(CR≥10)
Response	1.5/3.5 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 95%NTSC
Backlight	6 pcsCCFL, 40K hours, No Driver
Mass	2.58/2.70Kgs (Typ./Max.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), Connector30 pins
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LM240WU3-TLB1 24.0 inch LCD Panel Module for LG

LM240WU3-TLB1 LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

LM240WU3-TLB1 LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

LM240WU3-TLB1 LCD Panel Shipping and Package :

LM240WU3-TLB1 LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

LM240WU3-TLB1 LCD Panel FAQ :

Q: How long is the warranty of LM240WU3-TLB1 ?

A: 90days warranty .

Q: How can I trace my order of LG LM240WU3-TLB1 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods LM240WU3-TLB1 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How do you ship my goods LM240WU3-TLB1 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
