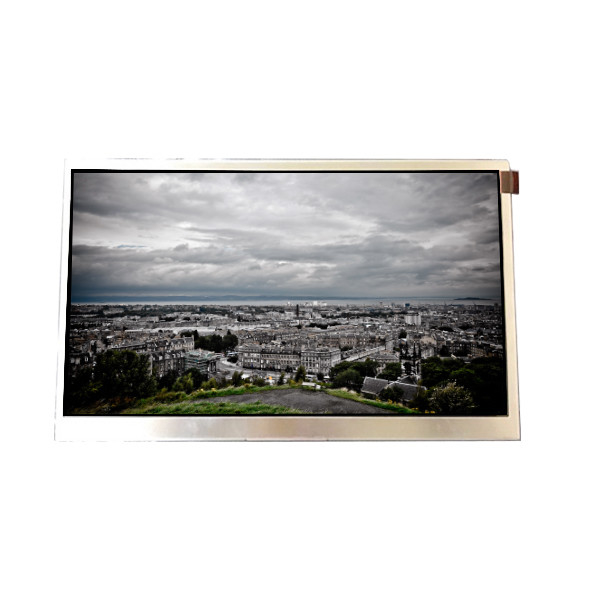

AV080ZKB-NW0 8.0 inch LCD Panel Screen Display For BOE
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | AV080ZKB-NW0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AV080ZKB-NW0 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, FOB | Resolution: | 1600(RGB)×480 209PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 194.4(W)×58.32(H) Mm |
| Application: | Stretched Bar LCD、Automotive Display | Color Depth: | 262K/16.7M |
Product Description
AV080ZKB-NW0 8.0 inch LCD Panel Screen Display For BOE
AV080ZKB-NW0 LCD Panel Product details :
| Brand | BOE |
| Model P/N | AV080ZKB-NW0 |
| Diagonal Size | 8.0" (Native bar) |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1600(RGB)×480 209PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 194.4(W)×58.32(H) mm |
| Outline Dim. | 204.5(W)×70(H)×1(D) mm |
| Treatment | Clear, Hard coating |
| Luminance | 0 cd/m² |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Transmittance | 5.1% (Typ.) |
| Support Color | 262K/16.7M |
| Light Source | No B/L |
| Weight | 46.5g (Typ.) |
| Designed For | Stretched Bar LCD,Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COG Built-in HX8249 x 2 + HX8678 |
| Interface Type | LVDS (1 ch, 6/8-bit), 40 pinsConnector |
| Power Supply | 3.3/5.5/-5.5V (Typ.)(VDD/VSDP/VSDN) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| AV080ZKB-NW0 8.0 inch LCD Panel Screen Display For BOE | |
