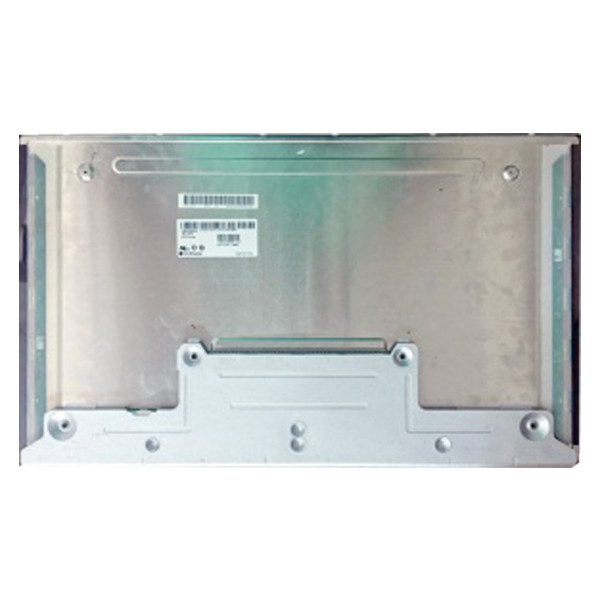

LM238WR2-SLA1 23.8 inch 3840*2160 Industrial LCD Screen Module

Brand Name:	LG Display
Model Number:	LM238WR2-SLA1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM238WR2-SLA1

Diagonal Size:

23.8"

Resolution:

3840(RGB)×2160, UHD 185PPI

Active Area:

527.04(W)×296.46(H) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Operating Mode:

IPS, Normally Black, Transmissive

Support Color:

1.07B 100% SRGB

Light Source:

16S4P WLED , 30K Hours , No Driver

Application:

Desktop Monitor、Industrial

Interface Type:

LVDS (8 Ch, 10-bit), 174 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM238WR2-SLA1 23.8 inch 3840*2160 Industrial LCD Screen Module

LM238WR2-SLA1 LCD Panel Product details :

Brand	LG Display
Model P/N	LM238WR2-SLA1
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	3840(RGB)×2160, UHD 185PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	530.2(W)×299.6(H) mm
Outline(mm)	545(W)×323.4(H)×14.9(D)
Luminance	300 (Typ.)(cd/m²)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Good View at	Symmetry
Color Depth	1.07B 100% sRGB
Mass	1.91/2.10Kgs (Typ./Max.)
Refresh Rate	60Hz
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Work Mode	IPS, Normally Black, Transmissive
Response	14 (Typ.)(G to G) ms
Backlight	16S4P WLED , 30K hours , No Driver
Used for	Desktop Monitor,Industrial
Touchscreen	Without
Signal Type	LVDS (8 ch, 10-bit), 174 pins Connector
Voltage Supply	10.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LM238WR2-SLA1 23.8 inch 3840*2160 Industrial LCD Screen Module

LM238WR2-SLA1 LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

LM238WR2-SLA1 LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

LM238WR2-SLA1 LCD Panel Shipping and Package :

LM238WR2-SLA1 LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

LM238WR2-SLA1 LCD Panel FAQ :

Q: How to order LG LM238WR2-SLA1 ?

A: We accept T/T , PAYPAL , WESTERN UNION.

Q: When will ship my order LM238WR2-SLA1 ?

A: The order are shipped within 1-2 working days after received the payment.

Q: What happen if LM238WR2-SLA1 I received can't work ?

A: LG LM238WR2-SLA1 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: How long the warranty of 23.8 inch TFT-LCD LM238WR2-SLA1 ?

A: 90 DAYS.
