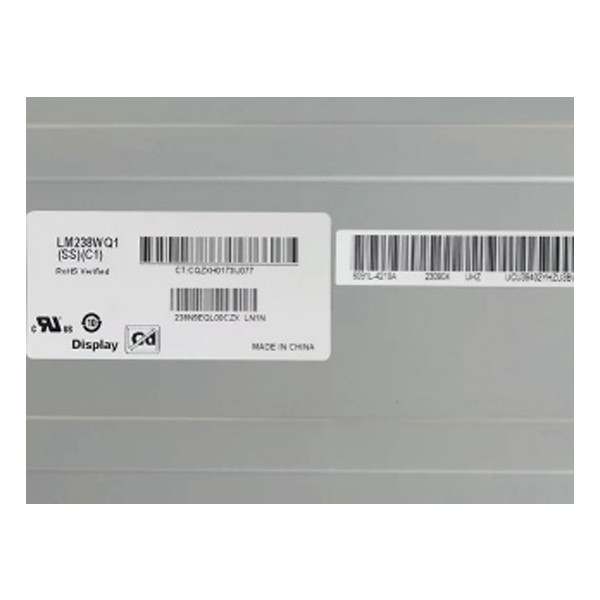

LM238WQ1-SSC1 23.8 inch 2560*1440 LCD Panel Module

Brand Name:	LG Display
Model Number:	LM238WQ1-SSC1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM238WQ1-SSC1

Diagonal Size:

23.8"

Resolution:

2560(RGB)×1440, Quad-HD 123PPI

Active Area:

525.7(W)×295.7(H) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Operating Mode:

IPS, Normally Black, Transmissive

Support Color:

16.7M 100%sRGB

Light Source:

WLED, 30K Hours, Without Driver

Application:

Desktop Monitor

Interface Type:

LVDS (4 Ch, 8-bit), 92 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM238WQ1-SSC1 23.8 inch 2560*1440 LCD Panel Module

LM238WQ1-SSC1 LCD Panel Product details :

Brand	LG Display
Model P/N	LM238WQ1-SSC1
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	2560(RGB)×1440, Quad-HD 123PPI
Pixel Format	RGB Vertical Stripe
Active Area	525.7(W)×295.7(H) mm
Bezel Opening	-
Outline Size	535(W)×313(H)×13.15(D) mm
Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	14 (Typ.)(G to G)
Display Colors	16.7M 100%sRGB
Lamp Type	WLED, 30K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.26Kgs (Typ.)
Application	Desktop Monitor

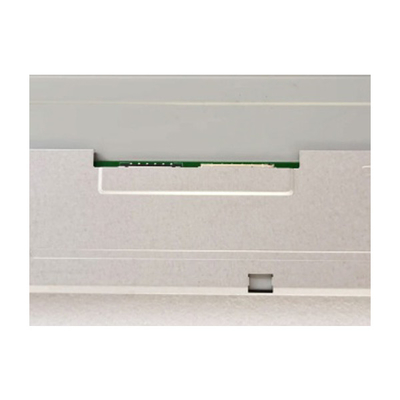

Signal Interface	LVDS (4 ch, 8-bit), 92 pins Connector
Input Voltage	10.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
LM238WQ1-SSC1 23.8 inch 2560*1440 LCD Panel Module

LM238WQ1-SSC1 LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

LM238WQ1-SSC1 LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

LM238WQ1-SSC1 LCD Panel Shipping and Package :

LM238WQ1-SSC1 LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

LM238WQ1-SSC1 LCD Panel FAQ :

Q: How long will I receive my goods LM238WQ1-SSC1 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of LM238WQ1-SSC1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LM238WQ1-SSC1 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of LM238WQ1-SSC1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
