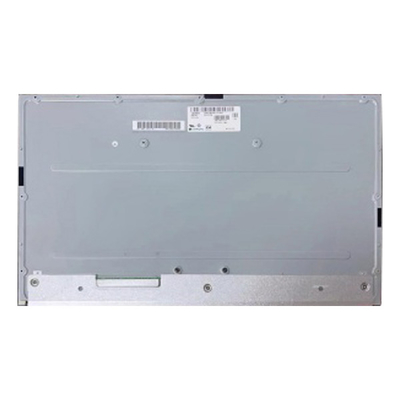

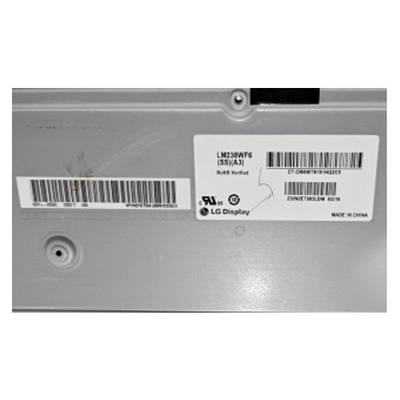

LM238WF6-SSA3 23.8 inch 1920*1080 LCD Panel Module for LG

Brand Name:	LG Display
Model Number:	LM238WF6-SSA3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM238WF6-SSA3

Diagonal Size:

23.8"

Resolution:

1920(RGB)×1080, FHD 92PPI

Active Area:

527.04(W)×296.43(H) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Operating Mode:

IPS, Normally Black, Transmissive

Support Color:

16.7M 93%DCI-P3

Light Source:

15S4PWLED, 30K Hours, No Driver

Application:

Desktop Monitor、Gaming

Interface Type:

LVDS (4 Ch, 8-bit), 92 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM238WF6-SSA3 23.8 inch 1920*1080 LCD Panel Module for LG

LM238WF6-SSA3 LCD Panel Product details :

Brand	LG Display
Model P/N	LM238WF6-SSA3
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.43(H) mm
Bezel Opening	-
Outline(mm)	535 × 313× 15.35 (H×V×D)
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	5.0 (Typ.)(G to G) ms
Good View at	Symmetry
Work Mode	IPS, Normally Black, Transmissive
Color Depth	16.7M 93%DCI-P3
Backlight	15S4PWLED, 30K hours, No Driver
Mass	2.14/2.24Kgs (Typ./Max.)
Used for	Desktop Monitor,Gaming
Refresh Rate	165Hz
Touchscreen	Without
Signal Type	LVDS (4 ch, 8-bit), 92 pins Connector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LM238WF6-SSA3 23.8 inch 1920*1080 LCD Panel Module for LG

LM238WF6-SSA3 LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

LM238WF6-SSA3 LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

LM238WF6-SSA3 LCD Panel Shipping and Package :

LM238WF6-SSA3 LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

LM238WF6-SSA3 LCD Panel FAQ :

Q: How long is the warranty of LM238WF6-SSA3 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of LM238WF6-SSA3 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders for LM238WF6-SSA3 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods of LM238WF6-SSA3 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
