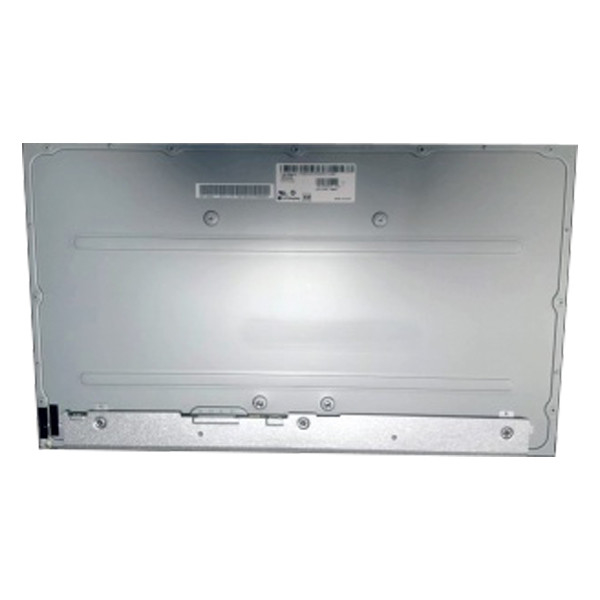

LM238WF5-SSG1 23.8 inch LCD Touch Panel Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM238WF5-SSG1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM238WF5-SSG1 | Diagonal Size: | 23.8" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 92PPI | Active Area: | 527.04(W)×296.46(H) Mm |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode: | IPS, Normally Black, Transmissive |
| Support Color: | 16.7M 72%NTSC | Light Source: | WLED, 30K Hours, No Driver |
| Application: | Desktop Monitor | Signal Type: | LVDS (2 Ch, 8-bit), 30 PinsConnector |
Product Description
LM238WF5-SSG1 23.8 inch LCD Touch Panel Module
LM238WF5-SSG1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM238WF5-SSG1 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline(mm) | 535.2 × 313.12× 12.76 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 72%NTSC |
| Backlight | WLED, 30K hours, No Driver |
| Mass | 1.93/2.03Kgs (Typ./Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | In-Cell Touch, USB |
| Signal Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LM238WF5-SSG1 23.8 inch LCD Touch Panel Module | |
LM238WF5-SSG1 LCD Screen About Us:
At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.
In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.
As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.
Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.
LM238WF5-SSG1 LCD Screen Payment:
For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.
Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.
LM238WF5-SSG1 LCD Panel Shipping and Package :
LM238WF5-SSG1 LCD Screen Shipping:
Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.
Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.
Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.
While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.
Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.
LM238WF5-SSG1 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of LM238WF5-SSG1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How to make payment of LM238WF5-SSG1 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of LM238WF5-SSG1 ?
A: Of course!sample order is welcome !
Q: Can I pay my order ofLM238WF5-SSG1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Want to Know more details about this product
