AE032EJU-N80 3.2 inch TFT LCD Display Screen Panel For BOE
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | AE032EJU-N80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AE032EJU-N80 | Diagonal Size: | 3.2" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 240(RGB)×320, QVGA 125PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 48.6(W)×64.8(H) Mm |
| Application: | Automotive Display | Color Depth: | 262K 60%NTSC |
Product Description

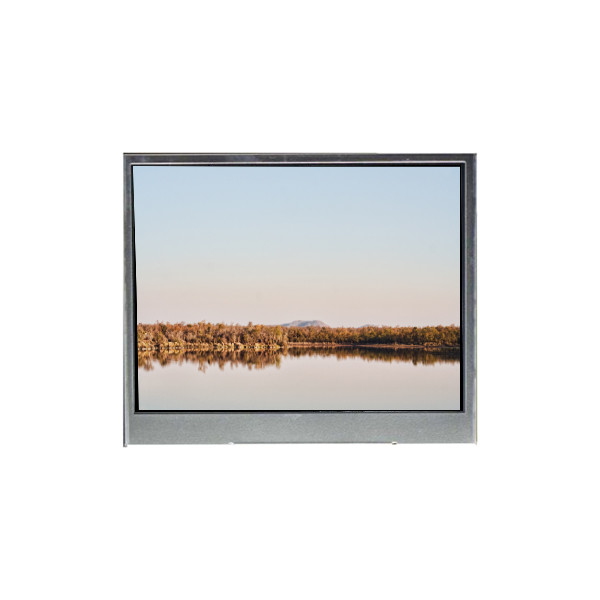

AE032EJU-N80 3.2 inch TFT LCD Display Screen Panel For BOE
AE032EJU-N80 LCD Panel Product details :
| Brand | BOE |
| Model P/N | AE032EJU-N80 |
| Diagonal Size | 3.2" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 240(RGB)×320, QVGA 125PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 48.6(W)×64.8(H) mm |
| Outline (mm) | 51.6×71×0.8 (H×V×D) |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Glass Thickness | 0.40+0.40 mm |
| Transmissivity | 18% (Typ.)(without Polarizer) |
| Color Depth | 262K 60%NTSC |
| Backlight | No B/L |
| Mass | - |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Suggest COG 1 source chips |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AE032EJU-N80 3.2 inch TFT LCD Display Screen Panel For BOE | |
