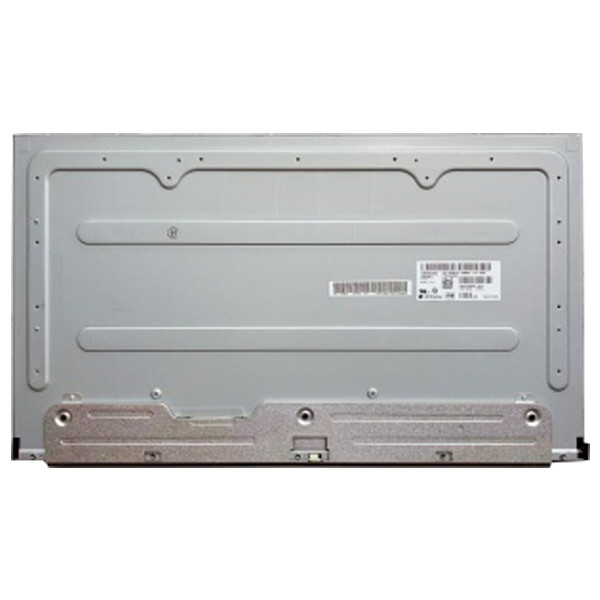

LM238WF5-SSD1 Touch LCD display For Lenovo AIO 520-24IKU

Brand Name:	LG Display
Model Number:	LM238WF5-SSD1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM238WF5-SSD1

Diagonal Size:

23.8"

Resolution:

1920(RGB)×1080, FHD 92PPI

Active Area:

527.04(W)×296.46(H) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Operating Mode:

IPS, Normally Black, Transmissive

Support Color:

16.7M

Light Source:

WLED , 30K Hours , Without Driver

Application:

Desktop Monitor

Interface Type:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM238WF5-SSD1 Touch LCD display For Lenovo AIO 520-24IKU

LM238WF5-SSD1 LCD Panel Product details :

Brand	LG Display
Model P/N	LM238WF5-SSD1
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Brightness	250 cd/m² (Typ.)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M
Frequency	60Hz
Weight	1.92/2.01Kgs (Typ./Max.)
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	IPS, Normally Black, Transmissive
Response Time	14 (Typ.)(G to G)
Lamp Type	WLED , 30K hours , Without Driver
Touch Screen	In-Cell Touch, USB
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pinsConnector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
LM238WF5-SSD1 Touch LCD display For Lenovo AIO 520-24IKU

LM238WF5-SSD1 LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

LM238WF5-SSD1 LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

LM238WF5-SSD1 LCD Panel Shipping and Package :

LM238WF5-SSD1 LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

LM238WF5-SSD1 LCD Panel FAQ :

Q: Can You declare my order of LM238WF5-SSD1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of LM238WF5-SSD1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LM238WF5-SSD1 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of LM238WF5-SSD1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
