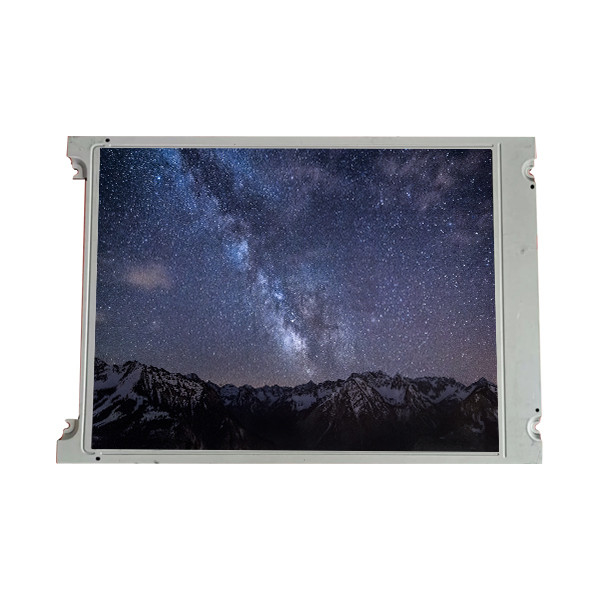

TX66D11VC0CAB 26.0 inch TFT LCD Display Screen Panel

Brand Name:	KOE
Model Number:	TX66D11VC0CAB
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX66D11VC0CAB

Diagonal Size:

26.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 60PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

575.769(W)×323.712(H) Mm

Application:

Digital Signage

Input Voltage:

12.0V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

TX66D11VC0CAB 26.0 inch TFT LCD Display Screen Panel

TX66D11VC0CAB LCD Panel Product details :

Brand	HITACHI
Model P/N	TX66D11VC0CAB
Diagonal Size	26.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 60PPI
Pixel Format	RGB Vertical Stripe
Active Area	575.769(W)×323.712(H) mm
Bezel Opening	581.77(W)×329.7(H) mm
Outline Size	646(W)×373(H)×52.3(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	550 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	18 (Typ.)(Tr+Td)
Display Colors	16.7M 73%NTSC
Lamp Type	14 pcsCCFL, With Inverter
Frequency	60Hz
Touch Screen	Without
Panel Weight	6.00Kgs (Typ.)
Application	Digital Signage
Signal Interface	LVDS (1 ch, 8-bit), 30 pins Connector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C; Vibration Level: 2.0G (19.6 m/s²)
