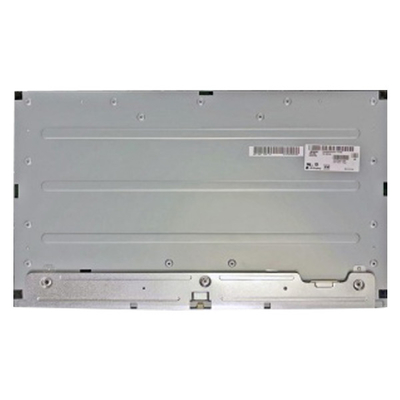

LM238WF4-SSH1 23.8 inch 1920*1080 Industrial LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM238WF4-SSH1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM238WF4-SSH1 | Diagonal Size: | 23.8" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 92PPI | Active Area: | 527.04(W)×296.46(H) Mm |
| Outline Dim.: | 534.9(H)×306.95(V)×12.9(D) Mm | Operating Mode: | IPS, Normally Black, Transmissive |
| Light Source: | WLED [17S4P], 30K Hours, W/O Driver | Support Color: | 16.7M 100%sRGB |
| Application: | Desktop Monitor、Industrial | Interface Type: | LVDS (2 Ch, 8-bit), 30 PinsConnector |
Product Description
LM238WF4-SSH1 23.8 inch 1920*1080 Industrial LCD Screen Panel
LM238WF4-SSH1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM238WF4-SSH1 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline Dim. | 534.9(H)×306.95(V)×12.9(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 100%sRGB |
| Light Source | WLED [17S4P], 30K hours, W/O Driver |
| Weight | 2.00/2.10Kgs (Typ./Max.) |
| Designed For | Desktop Monitor,Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LM238WF4-SSH1 23.8 inch 1920*1080 Industrial LCD Screen Panel | |
