LCD Screen Display Panel

LM238WF4-SSG2 23.8 inch LCD Display for HP Lenovo AIO Screen

All Category

Floor Standing Digital Signage

LM238WF4-SSG2 23.8 inch LCD Display for HP Lenovo AIO Screen

Brand Name:	LG
Model Number:	LM238WF4-SSG2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM238WF4-SSG2

Diagonal Size:

23.8"

Resolution:

1920(RGB)×1080, FHD 92PPI

Active Area:

527.04(W)×296.46(H) Mm

Outline(mm):

534.9(W)×306.95(H)×12.9(D) Mm

Work Mode:

IPS, Normally Black, Transmissive

Color Depth:

16.7M 100% SRGB

Lamp Type:

WLED [14S4P] , 30K Hours , W/O Driver

Used For:

Desktop Monitor

Signal Type:

LVDS (2 Ch, 8-bit)30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM238WF4-SSG2 23.8 inch LCD Display for HP Lenovo AIO Screen

LM238WF4-SSG2 LCD Panel Product details :

Brand	LG Display
Model P/N	LM238WF4-SSG2
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline Dim.	534.9(W)×306.95(H)×12.9(D) mm
Luminance	300 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Support Color	16.7M 100% sRGB
Weight	2.00/2.10Kgs (Typ./Max.)
Frame Rate	60Hz
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	14 (Typ.)(G to G)
Operating Mode	IPS, Normally Black, Transmissive
Light Source	WLED [14S4P] , 30K hours , W/O Driver
Designed For	Desktop Monitor
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit)30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
LM238WF4-SSG2 23.8 inch LCD Display for HP Lenovo AIO Screen

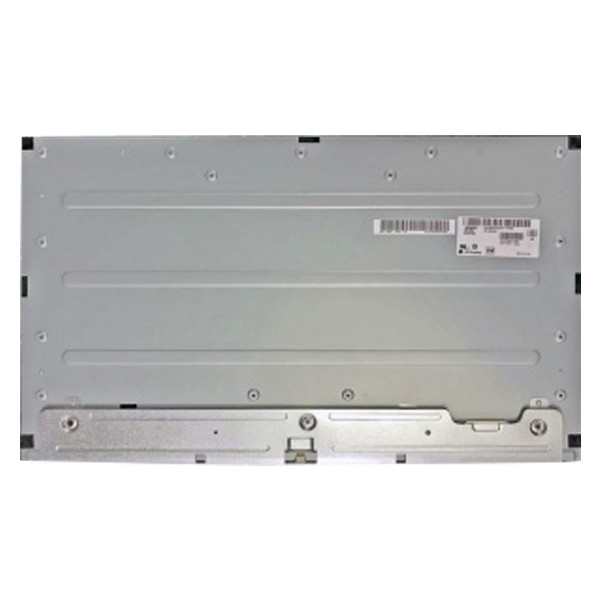

LM238WF4-SSG2 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

LM238WF4-SSG2 LCD Panel Shipping and Package :

LM238WF4-SSG2 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

LM238WF4-SSG2 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

LM238WF4-SSG2 LCD Panel FAQ :

Q: Can You declare my order of LM238WF4-SSG2 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of LM238WF4-SSG2 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of LM238WF4-SSG2 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of LM238WF4-SSG2 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
