LM238WF4-SSF1 23.8 inch Industrial LCD Display 1920*1080 LCD Screen

Brand Name:	LG
Model Number:	LM238WF4-SSF1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM238WF4-SSF1

Diagonal Size:

23.8"

Resolution:

1920(RGB)×1080, FHD 92PPI

Active Area:

527.04(W)×296.46(H) Mm

Outline(mm):

534.9(H)×306.95(V)×12.9(D) Mm

Work Mode:

IPS, Normally Black, Transmissive

Color Depth:

16.7M 99%sRGB

Lamp Type:

WLED [14S4P], 30K Hours, W/O Driver

Used For:

Desktop Monitor、Industrial

Signal Type:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM238WF4-SSF1 23.8 inch Industrial LCD Display 1920*1080 LCD Screen

LM238WF4-SSF1 LCD Panel Product details :

Brand	LG Display
Model P/N	LM238WF4-SSF1
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline Dim.	534.9(H)×306.95(V)×12.9(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	14 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	16.7M 99%sRGB
Light Source	WLED [14S4P], 30K hours, W/O Driver
Weight	2.00/2.10Kgs (Typ./Max.)
Designed For	Desktop Monitor,Industrial
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
LM238WF4-SSF1 23.8 inch Industrial LCD Display 1920*1080 LCD Screen

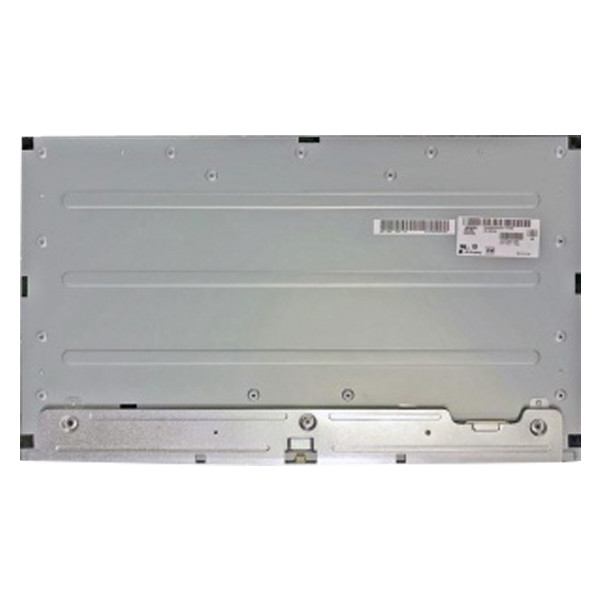

LM238WF4-SSF1 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

LM238WF4-SSF1 LCD Panel Shipping and Package :

LM238WF4-SSF1 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

LM238WF4-SSF1 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

LM238WF4-SSF1 LCD Panel FAQ :

Q: How long is the warranty of LM238WF4-SSF1 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of LM238WF4-SSF1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders for LM238WF4-SSF1 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods of LM238WF4-SSF1 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
