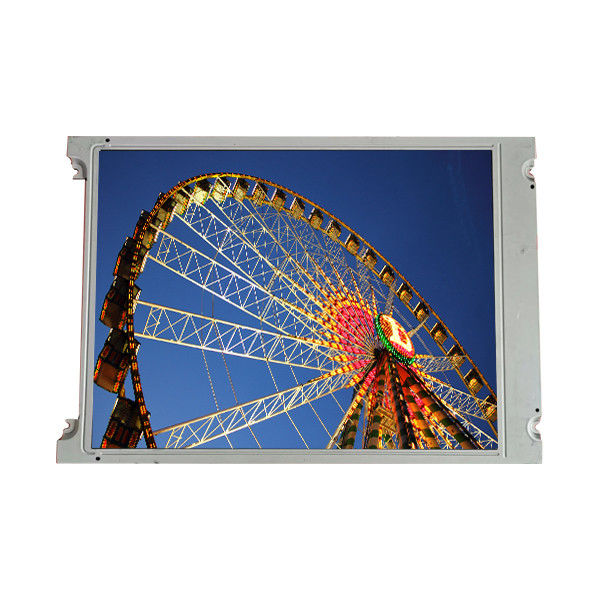

TX54D33VC0CAB 21.3 inch 1600*1200 LCD Screen Panel For KOE
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX54D33VC0CAB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX54D33VC0CAB | Diagonal Size: | 21.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1600(RGB)×1200, UXGA 94PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 432(W)×324(H) Mm |
| Application: | Medical Imaging | Power Supply: | 12.0V (Typ.) |
Product Description
TX54D33VC0CAB 21.3 inch 1600*1200 LCD Screen Panel For KOE
TX54D33VC0CAB LCD Panel Product details :
| Brand | HITACHI |
| Model P/N | TX54D33VC0CAB |
| Diagonal Size | 21.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1600(RGB)×1200, UXGA 94PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 432(W)×324(H) mm |
| Bezel Opening | - |
| Outline Dim. | 460.6(H)×362(V)×48.5(D) mm |
| Treatment | Antiglare, Hard coating (2H) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 9/8 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS-Pro, Normally Black, Transmissive |
| Support Color | 16.7M 70%NTSC |
| Light Source | CCFL [16 pcs], With Inverter |
| Weight | 2.80Kgs (Typ.) |
| Designed For | Medical Imaging |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| TX54D33VC0CAB 21.3 inch 1600*1200 LCD Screen Panel For KOE | |
