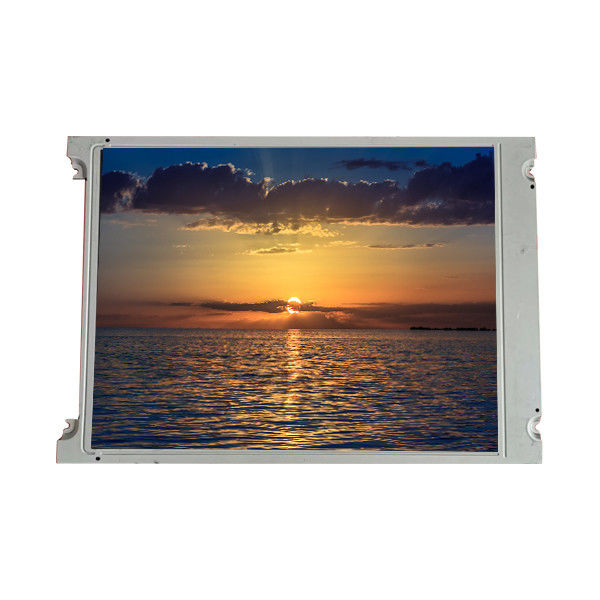

TX48D21VM0CAA 19.0 inch 1680*1050 LCD Screen Panel For Medical Imaging
Product Details:
| Place of Origin: | China |
| Brand Name: | KOE |
| Model Number: | TX48D21VM0CAA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TX48D21VM0CAA | Diagonal Size: | 19.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1680(RGB)×1050, WSXGA+ 104PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 409.5(W)×255.94(H) Mm |
| Application: | Medical Imaging | Frequency: | 60Hz |
Product Description
TX48D21VM0CAA 19.0 inch 1680*1050 LCD Screen Panel For Medical Imaging
TX48D21VM0CAA LCD Panel Product details :
| Brand | HITACHI |
| Model P/N | TX48D21VM0CAA |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1680(RGB)×1050, WSXGA+ 104PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 409.5(W)×255.94(H) mm |
| Bezel Opening | - |
| Outline Size | 444(W)×300(H) mm |
| Surface | Antiglare |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | - |
| Display Colors | 16.7M |
| Lamp Type | 6 pcsCCFL |
| Frequency | 60Hz |
| Touch Screen | - |
| Panel Weight | 2.90Kgs |
| Application | Medical Imaging |
| Signal Interface | LVDS (2 ch, 8-bit) |
| Input Voltage | 12.0V (Typ.) |
| TX48D21VM0CAA 19.0 inch 1680*1050 LCD Screen Panel For Medical Imaging | |
