LM238WF2-SSR2 New 23.8 inch 1920*1080 TFT LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LM238WF2-SSR2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM238WF2-SSR2 | Diagonal Size: | 23.8" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 92PPI | Active Area: | 527.04(W)×296.46(H) Mm |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Work Mode: | IPS, Normally Black, Transmissive |
| Color Depth: | 16.7M 99%sRGB | Lamp Type: | 15S4PWLED, 30K Hours, No Driver |
| Used For: | Desktop Monitor | Signal Type: | LVDS (2 Ch, 8-bit), 30 Pins Connector |
Product Description
LM238WF2-SSR2 New 23.8 inch 1920*1080 TFT LCD Screen Module
LM238WF2-SSR2 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM238WF2-SSR2 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline(mm) | 535 × 313× 11.65 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 99%sRGB |
| Backlight | 15S4PWLED, 30K hours, No Driver |
| Mass | 2.17/2.28Kgs (Typ./Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LM238WF2-SSR2 New 23.8 inch 1920*1080 TFT LCD Screen Module | |

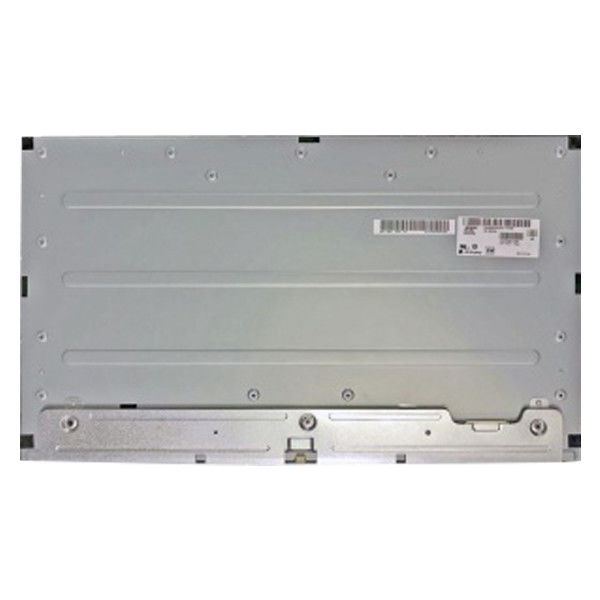

LM238WF2-SSR2 LCD Screen Photos :
