LM238WF2-SSQ1 23.8 inch 1920*1080 TFT LCD Screen Module

Brand Name:	LG
Model Number:	LM238WF2-SSQ1
MOQ:	2 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

LM238WF2-SSQ1

Diagonal Size:

23.8"

Resolution:

1920(RGB)×1080, FHD 92PPI

Active Area:

527.04(W)×296.46(H) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Work Mode:

IPS, Normally Black, Transmissive

Color Depth:

16.7M 72% NTSC

Lamp Type:

15S4P WLED , 30K Hours , No Driver

Used For:

Desktop Monitor

Signal Type:

LVDS (2 Ch, 8-bit), 30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM238WF2-SSQ1 23.8 inch 1920*1080 TFT LCD Screen Module

LM238WF2-SSQ1 LCD Panel Product details :

Brand	LG Display
Model P/N	LM238WF2-SSQ1
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline(mm)	535(W)×313(H)×13.2(D)
Luminance	250 (Typ.)(cd/m²)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Good View at	Symmetry
Color Depth	16.7M 72% NTSC
Mass	1.95/2.05Kgs (Typ./Max.)
Refresh Rate	60Hz
Treatment	Glare (Haze 0%), Hard coating (3H)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Work Mode	IPS, Normally Black, Transmissive
Response	14 (Typ.)(G to G) ms
Backlight	15S4P WLED , 30K hours , No Driver
Used for	Desktop Monitor
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pins Connector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LM238WF2-SSQ1 23.8 inch 1920*1080 TFT LCD Screen Module

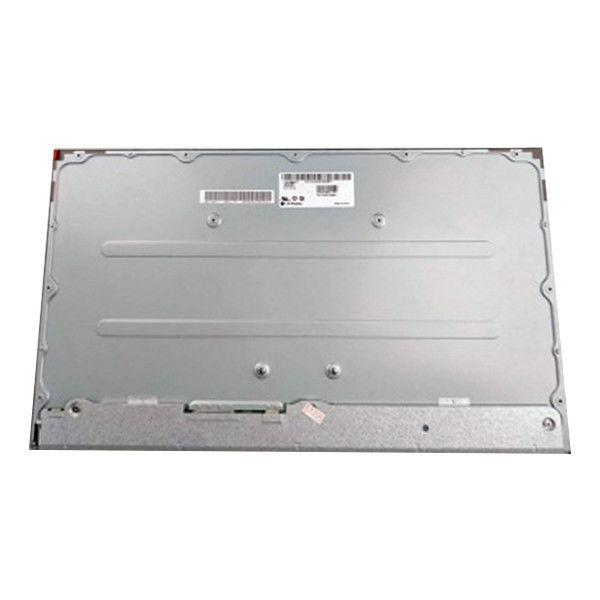

LM238WF2-SSQ1 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

LM238WF2-SSQ1 LCD Panel Shipping and Package :

LM238WF2-SSQ1 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

LM238WF2-SSQ1 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

LM238WF2-SSQ1 LCD Panel FAQ :

Q: Can you tested the LM238WF2-SSQ1 before shipping ?

A: Of course , our lcd panel LM238WF2-SSQ1 was Strictly tested before shipping.

Q: How to order LM238WF2-SSQ1 ?

A: We accept T/T , Paypal , western union .

Q: What happen if the lcd panel LM238WF2-SSQ1 received can't work ?

A: LM238WF2-SSQ1 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
