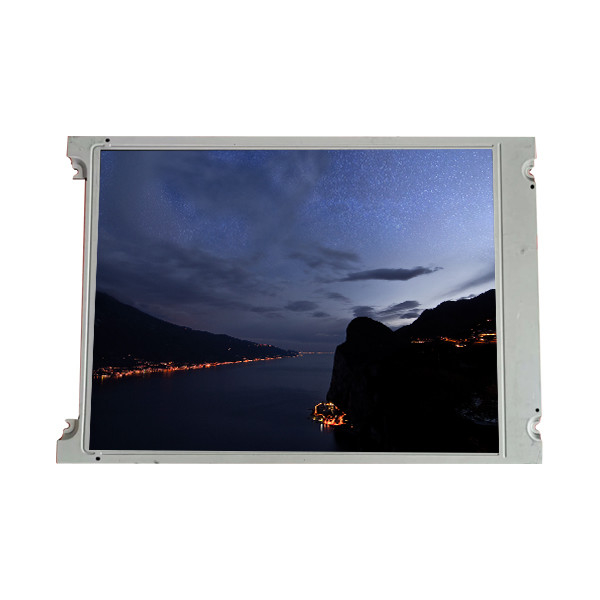

TX46D12VC0CAB 18.1 inch 1280*1024 LCD Screen Panel For KOE

Brand Name:	KOE
Model Number:	TX46D12VC0CAB
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX46D12VC0CAB

Diagonal Size:

18.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×1024, SXGA 90PPI

Pixel Format:

RGB Vertical Stripe

Support Color:

16.7M 70%NTSC

Application:

Desktop Monitor

Interface Type:

LVDS (2 Ch, 8-bit), 40 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

TX46D12VC0CAB 18.1 inch 1280*1024 LCD Screen Panel For KOE

TX46D12VC0CAB LCD Panel Product details :

Brand	HITACHI
Model P/N	TX46D12VC0CAB
Diagonal Size	18.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 90PPI
Pixel Format	RGB Vertical Stripe
Active Area	359.04(W)×287.232(H) mm
Bezel Opening	364.0(W)×289.0(H) mm
Outline Size	415(W)×326(H)×38.7(D) mm
Surface	Antiglare (Haze 25%)
Brightness	200 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	25/25 (Typ.)(Tr/Td)
Display Colors	16.7M 70%NTSC
Lamp Type	8 pcsCCFL, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.30Kgs (Max.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 40 pins Connector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C; Vibration Level: 2.0G (19.6 m/s²)
TX46D12VC0CAB 18.1 inch 1280*1024 LCD Screen Panel For KOE

TX46D12VC0CAB LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

TX46D12VC0CAB LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

TX46D12VC0CAB LCD Panel Shipping and Package :

TX46D12VC0CAB LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

TX46D12VC0CAB LCD Panel FAQ :

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long is the warranty of TX46D12VC0CAB ?

A: NEW Product warranty is 90 days.

Q: How to order lcd panel TX46D12VC0CAB ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
