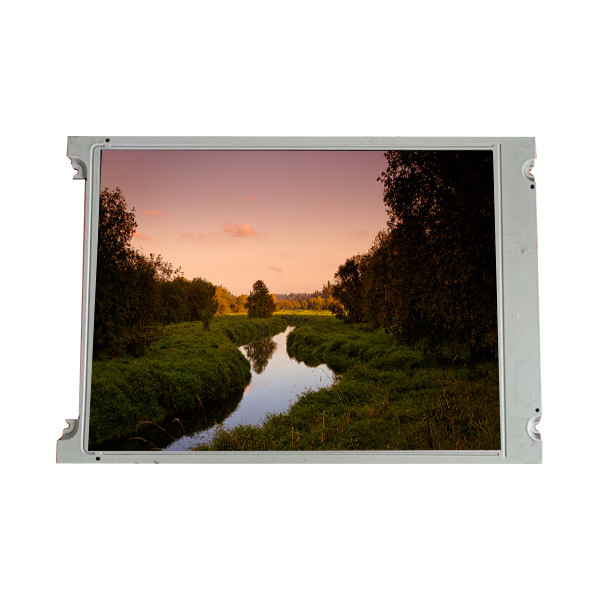

TX43D55VM0BAA 17.0 inch 1280*768 LCD Screen Panel For KOE

Brand Name:	KOE
Model Number:	TX43D55VM0BAA
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX43D55VM0BAA

Diagonal Size:

17.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×768, WXGA 87PPI

Pixel Format:

RGB Vertical Stripe

Support Color:

16.7M 60% NTSC

Application:

Desktop Monitor

Interface Type:

LVDS (1 Ch, 8-bit), 30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

TX43D55VM0BAA 17.0 inch 1280*768 LCD Screen Panel For KOE

TX43D55VM0BAA LCD Panel Product details :

Brand	HITACHI
Model P/N	TX43D55VM0BAA
Diagonal Size	17.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×768, WXGA 87PPI
Pixel Format	RGB Vertical Stripe
Active Area	369.6(W)×221.76(H) mm
Bezel Opening	373.6(W)×225.8(H) mm
Outline(mm)	400(W)×258(H)×22.5(D)
Luminance	350 (Typ.)(cd/m²)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Good View at	Symmetry
Color Depth	16.7M 60% NTSC
Mass	2.20Kgs
Refresh Rate	60Hz
Treatment	Antiglare
Contrast Ratio	800 : 1 (Typ.) (TM)
Work Mode	IPS-Pro, Normally Black, Transmissive
Response	10/12 (Typ.)(Tr/Td) ms
Backlight	4 pcs CCFL, No Driver
Used for	Desktop Monitor
Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit), 30 pins Connector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²)
TX43D55VM0BAA 17.0 inch 1280*768 LCD Screen Panel For KOE

TX43D55VM0BAA LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

TX43D55VM0BAA LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

TX43D55VM0BAA LCD Panel Shipping and Package :

TX43D55VM0BAA LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

TX43D55VM0BAA LCD Panel FAQ :

Q:Can you declared low value for my order when shipping?

A:Yes, We can do it for you if you need.

Q: What happen if the lcd panel TX43D55VM0BAA I received can't work ?

A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.

Q: Are you manufactory or trade company?

A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: When will my order TX43D55VM0BAA ship?

A: The order are shipped within 1-2 working days after received the payment.
