LM238WF2-SSL1 23.8 inch 1920*1080 LCD Screen Module for Desktop Monitor

All Category

Floor Standing Digital Signage

LM238WF2-SSL1 23.8 inch 1920*1080 LCD Screen Module for Desktop Monitor

Brand Name:	LG
Model Number:	LM238WF2-SSL1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM238WF2-SSL1

Diagonal Size:

23.8"

Resolution:

1920(RGB)×1080, FHD 92PPI

Active Area:

527.04(W)×296.46(H) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Work Mode:

IPS, Normally Black, Transmissive

Color Depth:

16.7M 69%NTSC

Lamp Type:

15S4PWLED, 30K Hours

Used For:

Desktop Monitor

Signal Type:

LVDS (2 Ch, 8-bit), 30 Pins Connector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM238WF2-SSL1 23.8 inch 1920*1080 LCD Screen Module for Desktop Monitor

LM238WF2-SSL1 LCD Panel Product details :

Brand	LG Display
Model P/N	LM238WF2-SSL1
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline Size	535(W)×313(H)×13.2(D) mm
Surface	Glare (Haze 0%), Hard coating (3H)
Brightness	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	14 (Typ.)(G to G)
Display Colors	16.7M 69%NTSC
Lamp Type	15S4PWLED, 30K hours
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.91/2.01Kgs (Typ./Max.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
LM238WF2-SSL1 23.8 inch 1920*1080 LCD Screen Module for Desktop Monitor

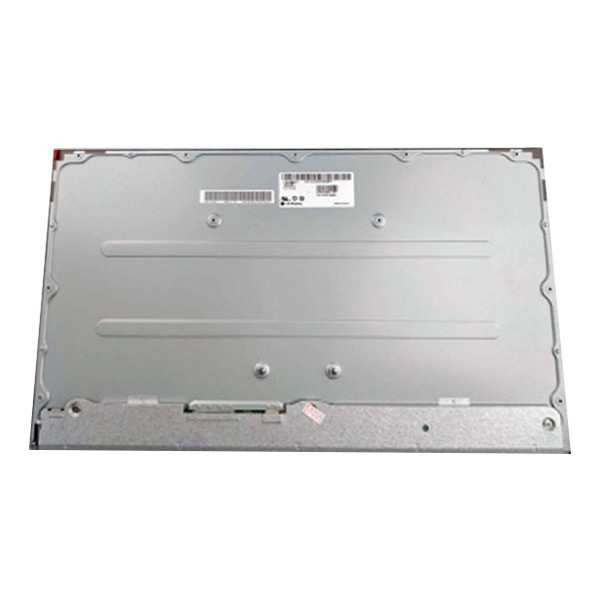

LM238WF2-SSL1 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

LM238WF2-SSL1 LCD Panel Shipping and Package :

LM238WF2-SSL1 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

LM238WF2-SSL1 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

LM238WF2-SSL1 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of LM238WF2-SSL1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: How can I trace my order of LM238WF2-SSL1 ?

A: we will give you tracking number then you can trace your order from website.

Q: How to make payment of LM238WF2-SSL1 ?

A: We accept T/T , Paypal , western union .

Q: Do you accept sample orders of LM238WF2-SSL1 ?

A: Of course!sample order is welcome !
