LM238WF2-SSKP 23.8 Inch LCD Display Screen For Lenovo AIO

Brand Name:	LG
Model Number:	LM238WF2-SSKP
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM238WF2-SSKP

Diagonal Size:

23.8"

Resolution:

1920(RGB)×1080, FHD 92PPI

Active Area:

527.04(W)×296.46(H) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Work Mode:

IPS, Normally Black, Transmissive

Color Depth:

16.7M 72%NTSC

Lamp Type:

15S4PWLED, 30K Hours

Used For:

Desktop Monitor

Signal Type:

LVDS (2 Ch, 8-bit), Connector30 Pins

Supply Ability:

100000 Unit/Units per Month

Product Description

LM238WF2-SSKP 23.8 Inch LCD Display Screen For Lenovo AIO

LM238WF2-SSKP LCD Panel Product details :

Brand	LG Display
Model P/N	LM238WF2-SSKP
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline (mm)	535×314.3×19.6 (H×V×D)
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	14 (Typ.)(G to G) ms
Good View at	Symmetry
Work Mode	IPS, Normally Black, Transmissive
Color Depth	16.7M 72%NTSC
Backlight	15S4PWLED, 30K hours
Mass	2.56/2.68Kgs (Typ./Max.)
Used for	Desktop Monitor
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), Connector30 pins
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LM238WF2-SSKP 23.8 Inch LCD Display Screen For Lenovo AIO

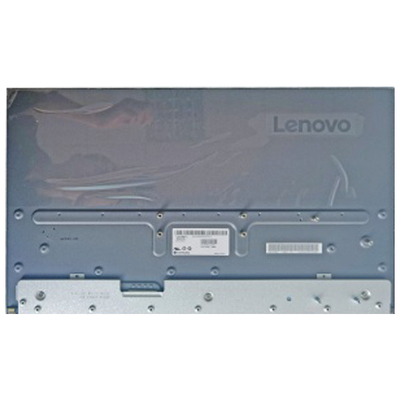

LM238WF2-SSKP LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

LM238WF2-SSKP LCD Panel Shipping and Package :

LM238WF2-SSKP LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

LM238WF2-SSKP LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

LM238WF2-SSKP LCD Panel FAQ :

Q: How long is the warranty of LM238WF2-SSKP ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of LM238WF2-SSKP ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders for LM238WF2-SSKP ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods of LM238WF2-SSKP ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
