LCD Screen Display Panel
>
LM238WF2-SSK3 23.8 inch LCD Display 1920*1080 LCD Module

LM238WF2-SSK3 23.8 inch LCD Display 1920*1080 LCD Module

Brand Name: LG
Model Number: LM238WF2-SSK3
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Model Name:
LM238WF2-SSK3
Diagonal Size:
23.8"
Resolution:
1920(RGB)×1080, FHD 92PPI
Active Area:
527.04(W)×296.46(H) Mm
Viewing Angle:
89/89/89/89 (Typ.)(CR≥10)
Work Mode:
IPS, Normally Black, Transmissive
Color Depth:
16.7M 69%NTSC
Lamp Type:
15S4PWLED, 30K Hours, No Driver
Used For:
Desktop Monitor
Signal Type:
LVDS (2 Ch, 8-bit), 30 PinsConnector
Supply Ability:
100000 Unit/Units per Month
Product Description

LM238WF2-SSK3 23.8 inch LCD Display 1920*1080 LCD Module



LM238WF2-SSK3 LCD Panel Product details :



Brand LG Display
Model P/N LM238WF2-SSK3
Diagonal Size 23.8"
Panel Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)×1080, FHD 92PPI
Pixel Format RGB Vertical Stripe
Active Area 527.04(W)×296.46(H) mm
Bezel Opening -
Outline Size 535(W)×313(H)(D) mm
Treatment Antiglare, Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Response 14 (Typ.)(G to G) ms
Good View at Symmetry
Work Mode IPS, Normally Black, Transmissive
Color Depth 16.7M 69%NTSC
Backlight 15S4PWLED, 30K hours, No Driver
Mass 1.91/2.01Kgs (Typ./Max.)
Used for Desktop Monitor
Refresh Rate 60Hz
Touchscreen Without
Signal Type LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply 5.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LM238WF2-SSK3 23.8 inch LCD Display 1920*1080 LCD Module

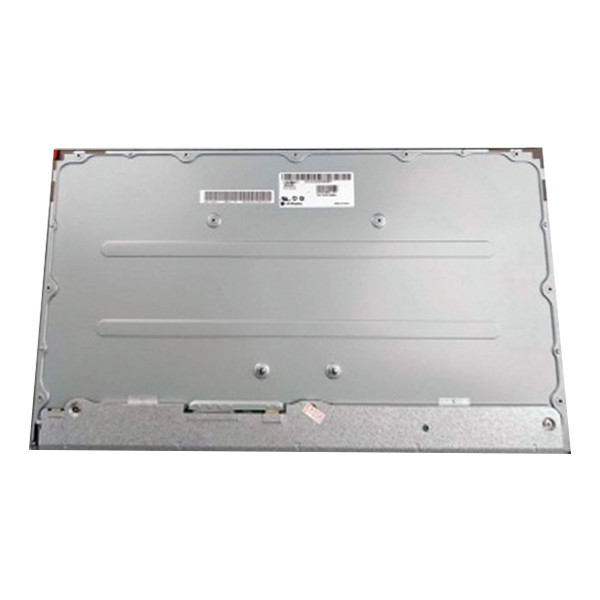

LM238WF2-SSK3 LCD Screen Photos :
