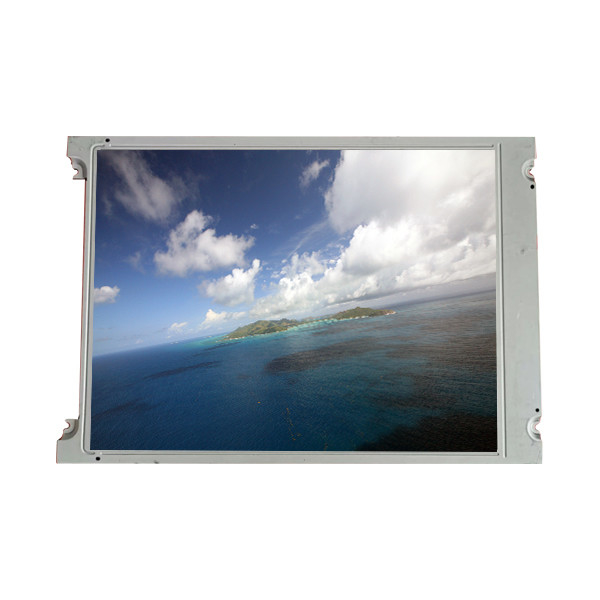

TX40D201VM0BAB 15.8 inch 2560*600 LCD Screen Panel For Industrial

Brand Name:	KOE
Model Number:	TX40D201VM0BAB
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TX40D201VM0BAB

Diagonal Size:

15.8" (Native Bar)

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

2560(RGB)×600 166PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

389.76(W)×91.35(H) Mm

Application:

Industrial、Digital Signage、Stretched Bar LCD

Refresh Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

TX40D201VM0BAB 15.8 inch 2560*600 LCD Screen Panel For Industrial

TX40D201VM0BAB LCD Panel Product details :

Brand	KOE
Model P/N	TX40D201VM0BAB
Diagonal Size	15.8" (Native bar)
Panel Type	a-Si TFT-LCD, LCM
Resolution	2560(RGB)×600 166PPI
Pixel Format	RGB Vertical Stripe
Active Area	389.76(W)×91.35(H) mm
Bezel Opening	392.76(W)×94.35(H) mm
Outline(mm)	409.8 × 109.5× 15 (H×V×D)
Treatment	Antiglare
Luminance	1000 cd/m² (Typ.)
Contrast Ratio	1300 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	25 (Max.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	ISP, Normally Black, Transmissive
Color Depth	16.7M 70%NTSC
Backlight	4 stringsWLED, 50K hours, No Driver
Mass	658g (Typ.)
Used for	Industrial,Digital Signage,Stretched Bar LCD
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit), 20 pinsConnector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C
TX40D201VM0BAB 15.8 inch 2560*600 LCD Screen Panel For Industrial

TX40D201VM0BAB LCD Screen About Us:

At our store, we prioritize quality and customer satisfaction. Before shipping out any product, we meticulously test each item to ensure it meets our high standards. Upon receiving your order, we urge you to promptly inspect and use the product.

In the rare event that the product does not function properly or arrives damaged, we kindly request that you reach out to us directly. By contacting us, you allow us the opportunity to swiftly address any issues without the need for opening a CASE, which can have detrimental effects on our store's reputation and prolong the resolution process significantly.

As dedicated sellers, we take full responsibility for resolving any problems you encounter with our products. Your satisfaction is our top priority, and we are committed to working with you until the issue is fully resolved.

Therefore, we encourage you to contact us directly should you experience any difficulties or concerns with your purchase. We are here to assist you every step of the way.

TX40D201VM0BAB LCD Screen Payment:

For your convenience, we accept a variety of payment methods, including PayPal and all major credit cards such as Visa, MasterCard, ALI, and Discover. When placing your order, you'll find a dropdown menu where you can select the specific model and, if applicable, the color variation.

Should you need to modify or cancel your order, you have the right to do so before it enters the shipping process. Simply reach out to us, and we'll assist you with the necessary steps. However, once the order has been shipped, we are unable to cancel it. In such cases, please contact us, and we'll work together to find a suitable solution to meet your needs.

TX40D201VM0BAB LCD Panel Shipping and Package :

TX40D201VM0BAB LCD Screen Shipping:

Please ensure that the address provided is accurate and deliverable. We cannot be held responsible for undeliverable addresses. In the event of items being returned due to an incorrect address, we reserve the right to charge a shipping fee to resend the items.

Orders are typically processed and shipped within 5 business days following the clearance of your payment. Please note that shipments are not made on Saturdays, Sundays, or holidays.

Our standard shipping method is airmail, which is reliable and cost-effective. For those requiring urgent delivery, we also offer international Express options such as EMS. Please be aware that opting for Express delivery may incur an additional shipping fee.

While we strive to ensure prompt delivery, the speed of shipping is beyond our control. Generally, shipments take between 10 to 35 working days to reach most countries, excluding peak periods and special holidays. If you have not received your order within one month, please don't hesitate to contact us for assistance.

Your satisfaction with our shipping services is important to us, and we're here to help address any concerns you may have regarding the delivery of your order.

TX40D201VM0BAB LCD Panel FAQ :

Q: If I order TX40D201VM0BAB now,when will you ship the goods ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders for TX40D201VM0BAB ?

A: Of course!sample order is welcome !

Q: How long is the warranty of TX40D201VM0BAB ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of TX40D201VM0BAB ?

A: Of course!If you make a large order, we will give you a discount.
