LM238WF1-SLH1 IPS LCD screen for Dell inspiron 24 3464 series
Product Details:
| Place of Origin: | China |
| Brand Name: | LG |
| Model Number: | LM238WF1-SLH1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM238WF1-SLH1 | Diagonal Size: | 23.8" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 92PPI | Active Area: | 527.04(W)×296.46(H) Mm |
| Outline(mm): | 546(H)×318.9(V)×8.1(D) Mm | Work Mode: | IPS, Normally Black, Transmissive |
| Color Depth: | 16.7M 72%NTSC | Backlight: | WLED [3 Strings], 30K Hours, W/O Driver |
| Used For: | Desktop Monitor、Industrial、Gaming | Signal Type: | LVDS (2 Ch, 8-bit), 30 PinsConnector |
Product Description
LM238WF1-SLH1 IPS LCD screen for Dell inspiron 24 3464 series
LM238WF1-SLH1 LCD Panel Product details :
| Brand | LG Display |
| Model P/N | LM238WF1-SLH1 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | 530.2(W)×299.6(H) mm |
| Outline Dim. | 546(H)×318.9(V)×8.1(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 72%NTSC |
| Light Source | WLED [3 strings], 30K hours, W/O Driver |
| Weight | TBD |
| Designed For | Desktop Monitor,Industrial,Gaming |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LM238WF1-SLH1 IPS LCD screen for Dell inspiron 24 3464 series | |

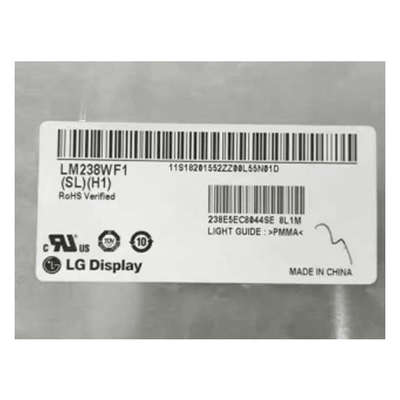

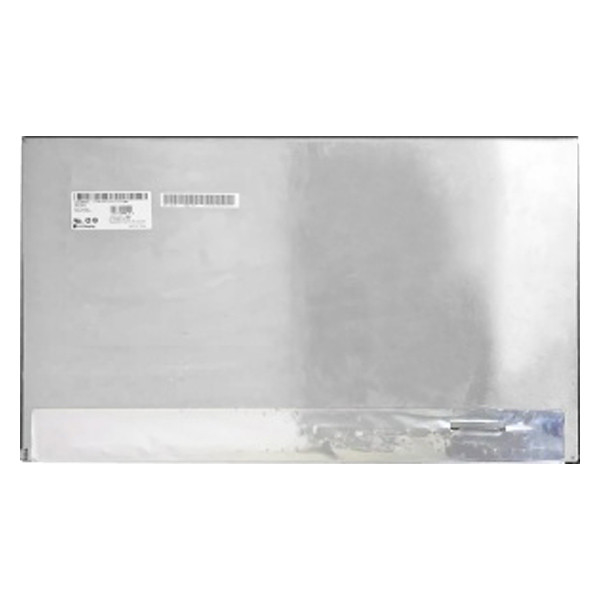

LM238WF1-SLH1 LCD Screen Photos :
Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.
It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.
Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.
LM238WF1-SLH1 LCD Panel Shipping and Package :
LM238WF1-SLH1 LCD Screen Shipping Delivery :
Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.
In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.
LM238WF1-SLH1 LCD Screen Returns:
1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.
2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.
3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.
LM238WF1-SLH1 LCD Panel FAQ :
Q: Can you tested the LM238WF1-SLH1 before shipping ?
A: Of course , our lcd panel LM238WF1-SLH1 was Strictly tested before shipping.
Q: How to order LG LM238WF1-SLH1 ?
A: We accept T/T , Paypal , western union .
Q: How long the warranty of the lcd LM238WF1-SLH1 ?
A: 90 days .
Q: What happen if the lcd panel LM238WF1-SLH1 I received can't work ?
A: LM238WF1-SLH1 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
