LM238WF1-SLA1 1920*1080 23.8 inch Industrial LCD Display Monitor

Brand Name:	LG
Model Number:	LM238WF1-SLA1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LM238WF1-SLA1

Diagonal Size:

23.8"

Resolution:

1920(RGB)×1080, FHD 92PPI

Active Area:

527.04(W)×296.46(H) Mm

Outline(mm):

543 × 317.4× 11.7 (H×V×D)

Work Mode:

IPS, Normally Black, Transmissive

Color Depth:

16.7M 72%NTSC

Backlight:

16S3PWLED, 30K Hours, No Driver

Used For:

Desktop Monitor、Industrial、Gaming

Signal Type:

LVDS (2 Ch, 8-bit), 30 PinsConnector

Supply Ability:

100000 Unit/Units per Month

Product Description

LM238WF1-SLA1 1920*1080 23.8 inch Industrial LCD Display Monitor

LM238WF1-SLA1 LCD Panel Product details :

Brand	LG Display
Model P/N	LM238WF1-SLA1
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	530.2(W)×299.6(H) mm
Outline(mm)	543 × 317.4× 11.7 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	5 (Typ.)(G to G) ms
Good View at	Symmetry
Work Mode	IPS, Normally Black, Transmissive
Color Depth	16.7M 72%NTSC
Backlight	16S3PWLED, 30K hours, No Driver
Mass	2.27/2.39Kgs (Typ./Max.)
Used for	Desktop Monitor,Industrial,Gaming
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
LM238WF1-SLA1 1920*1080 23.0 inch Industrial LCD Display Monitor

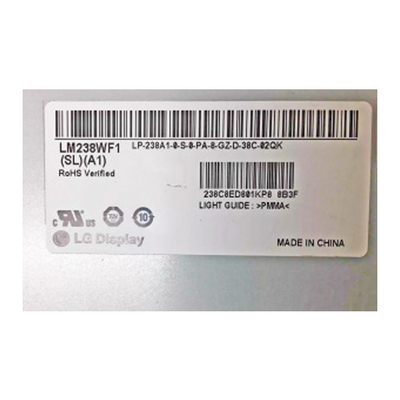

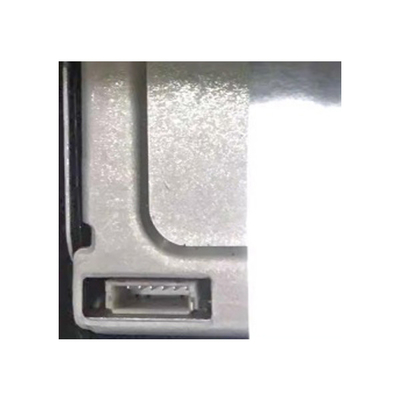

LM238WF1-SLA1 LCD Screen Photos :

Please be advised that the photos provided are for illustrative purposes only and depict items similar to the product you are considering. They serve as a general guide to help you visualize the item.

It's important to note that specific markings, labels, colors, etc., shown in the photos may not necessarily reflect the exact details of the item you will receive. If there are particular features or characteristics critical to your needs, we recommend consulting with us prior to making a purchase.

Please understand that the photos do not constitute a comprehensive description of the item, and we encourage you to reach out to us for any clarifications or additional information you may require.

LM238WF1-SLA1 LCD Panel Shipping and Package :

LM238WF1-SLA1 LCD Screen Shipping Delivery :

Thank you for choosing our LCD screen. We understand the anticipation of receiving your order promptly. It's important to note that while we strive to provide accurate estimates for delivery times, they serve as approximations rather than guarantees.

In the majority of instances, items typically arrive within or before the estimated timeframe. However, once your goods are handed over to the delivery service, their execution and timing are beyond our direct control.

LM238WF1-SLA1 LCD Screen Returns:

1. Change of Mind or Incorrect Purchase: If you wish to return the item due to a change of mind or an incorrect purchase, please be aware that you will be responsible for reimbursing any out-of-pocket delivery costs incurred by the seller. These costs will be deducted from your refund.

2. Faulty Item Claims: In cases where you claim a fault with the item but upon inspection, no fault is found, you will be required to reimburse the seller for any out-of-pocket delivery costs incurred. Additionally, if applicable, an inspection/technical services fee may also be charged.

3. Condition of Returns: All returns must be in their original condition. Items that are returned in a condition other than their original state, including but not limited to misuse or damage, will be refused.

LM238WF1-SLA1 LCD Panel FAQ :

Q: Can You declare my order of LM238WF1-SLA1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of LM238WF1-SLA1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of LM238WF1-SLA1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Do you accept sample orders of LM238WF1-SLA1 ?

A: Of course!sample order is welcome !
